Product Range

Manual Valves

A complete range of manually operated industrial valves engineered to API, BS and ASME standards — from standard butterfly and ball valves to high-performance triple offset and trunnion designs.

Available Models & Configurations

47 products listed  ·  Click Send Enquiry on any card to enquire via WhatsApp

📞 +918087013521
Manual Operated Butterfly Valve

Manual Operated Butterfly Valve

  • Body: IS 210 Gr FG 200 | WCB | CF8 | CF8M
  • Disc: SG Iron | SS 304
  • Seat: Nitrile | EPDM | Silicon | Viton
  • Mfg Std: BS 5155 | IS 13095
  • Test Std: BS 6755
  • Shaft: AISI 410 | AISI 304
  • Ends: Wafer Type — ASME B16.5
  • Operation: Gear | Pneumatic | Electric Actuated
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig
  • Size Range: 40 MM To 1500 MM
Off Set Disc Butterfly Valve

Off Set Disc Butterfly Valve

  • Body: WCB | CF8 | CF8M
  • Disc: ASTM A351 Gr CF8 | CF8M
  • Seat: PTFE | Graphite Filled PTFE | Glass Filled PTFE
  • Mfg Std: API 609
  • Test Std: API 598
  • Shaft: AISI 410 | AISI 304 | AISI 316
  • Ends: Wafer Type (ASME B16.5 150#)
  • Operation: Gear | Pneumatic | Electrical Actuated
  • Hyd Test: Body: 1100 Psig | Seat: 800 Psig
  • Size Range: 40 MM To 1200 MM
Plug Type Flanged End

Plug Type Flanged End

  • Body: ASTM A216 Gr WCB
  • Plug: ASTM A216 Gr WCB
  • Mfg Std: MSS SP 78 | BS 5158
  • Test Std: MSS SP 78 | BS 6755
  • Max CWP: 150 Psig
  • Ends: Flanged ASME B16.5 RF (150#)
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig
  • Size Range: 15 MM To 350 MM Flanged End
Triple Offset Design Butterfly Valve

Triple Offset Design Butterfly Valve

  • Body/Disc: WCB | CF8 | CF8M
  • Seat Ring: Metal Seated
  • Mfg Std: API 609
  • Test Std: BS EN 12266 Part-1
  • Leakage Class: Class IV
  • Rating: 5 Kg/Cm²
  • Operating Temp: 250°C To 1000°C
  • Ends: Wafer | Flanged
  • Operation: Gear Operated
  • Hyd Test: Body: 15 Kg/Cm² | Seat: 10 Kg/Cm²
  • Size Range: 80 MM To 600 MM
Ball Valve

Ball Valve

  • Body: ASTM A351 Gr CF8
  • Ball: AISI 304 | CF8
  • Stem: AISI 304
  • Seat: PTFE
  • Mfg Std: BS 5351 | ISO 17292
  • Test Std: BS 6755
  • Ends: Flanged 150#/300#
  • Hyd Test: Body: 1100 Psig
  • Size Range: 15 MM To 600 MM
Gate Valve

Gate Valve

  • Body/Bonnet: WCB | CF8 | CF8M | CF3 | CF3M
  • Trims: 13 Cr | 18 Cr 8 Ni
  • Mfg Std: API 600
  • Test Std: API 598
  • Ends: Flanged 150#/300#/1500#
  • Operation: Manual | Gear | Electrical
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 25 MM To 600 MM
Globe Valve

Globe Valve

  • Body/Bonnet: ASTM A216 Gr WCB | CF8 | CF8M | CF3 | CF3M
  • Trims: 13 Cr | 18 Cr 8 Ni
  • Mfg Std: BS 1873
  • Test Std: BS 6755
  • Ends: Flanged ASME B16.5 RF
  • Operation: Manual | Gear | Electrical
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 25 MM To 300 MM

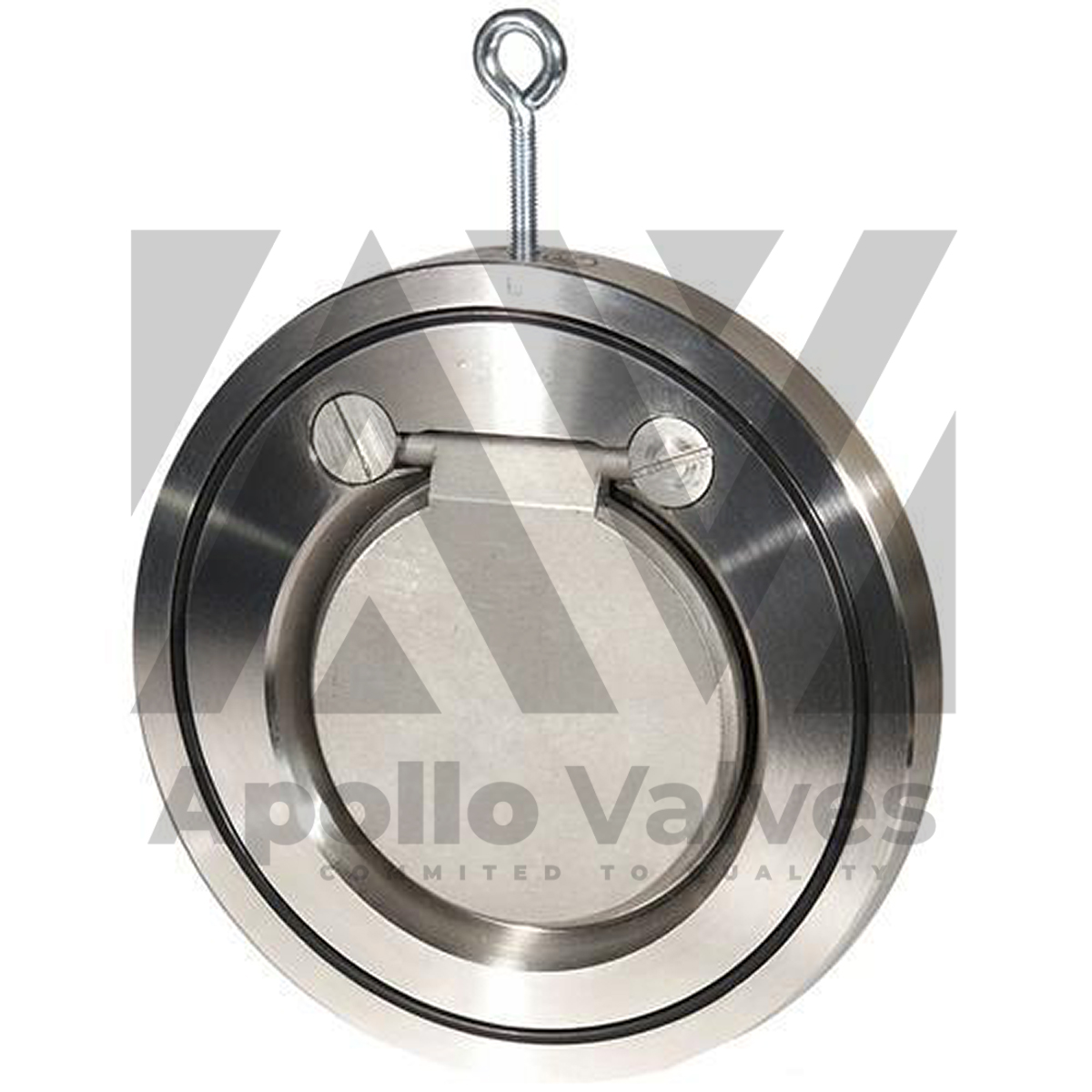

Wafer Check Valve

Wafer Check Valve

  • Body: ASTM A351 Gr CF8 | CF8M | CF3 | CF3M
  • Pin: 18 Cr 8 Ni — AISI 304
  • Rings: Moulded Neoprene | Nitrile | PTFE
  • Mfg/Test Std: API 6D
  • Ends: Wafer Type
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig
  • Size Range: 25 MM To 600 MM

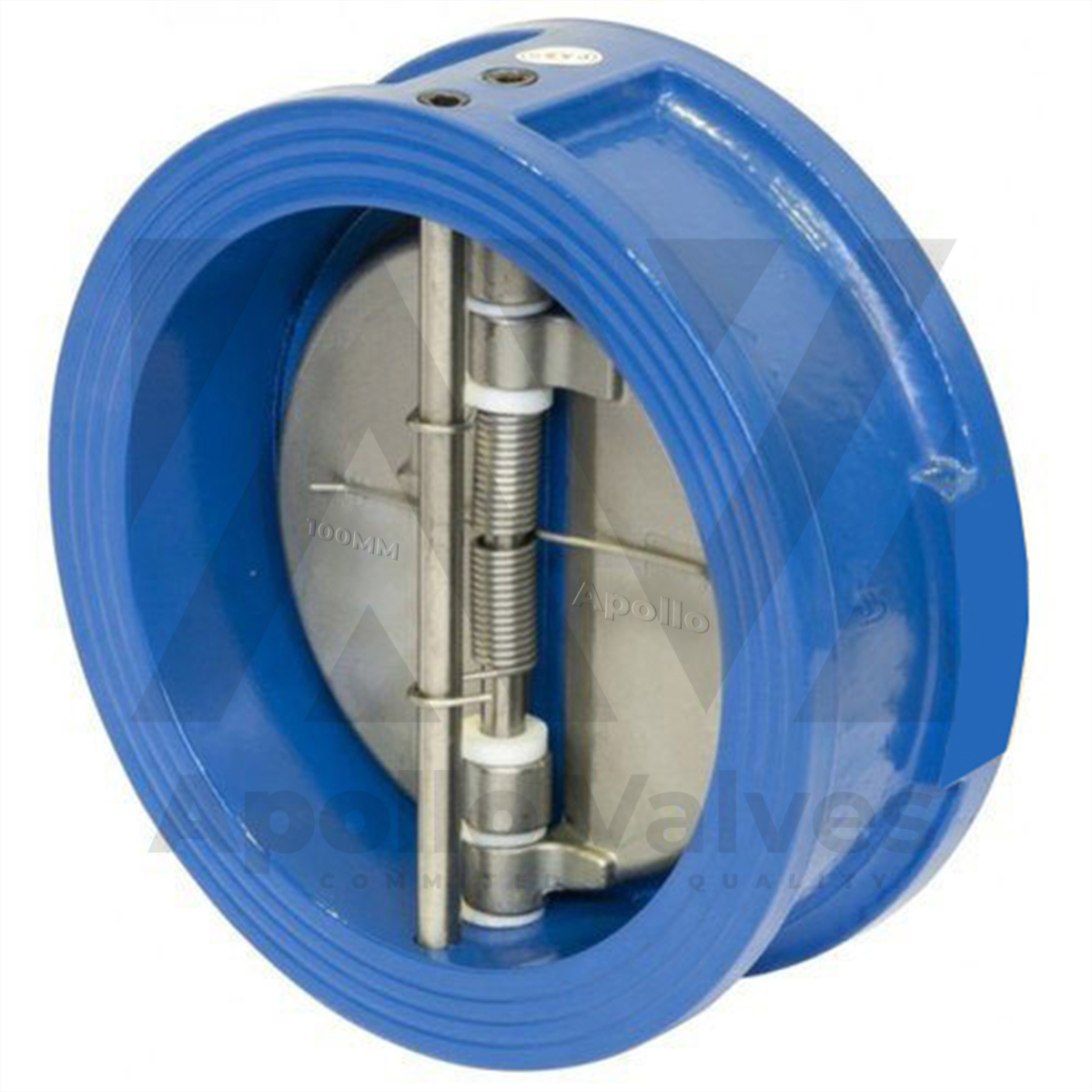

Dual Plate Check Valve

Dual Plate Check Valve

  • Body: ASTM A216 Gr WCB | WC1 | WC6 | WC9 | LCB
  • Closure Plate: SS 304 | SS 316
  • Hing/Stop Pin: AISI 304 | AISI 316
  • Spring: Stainless Steel
  • Seat: EPDM
  • Ends: Wafer Type — ANSI B16.5 (150#)
  • Mfg Std: API 6D | API 594
  • Test Std: API 6D | API 598
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 50 MM To 600 MM

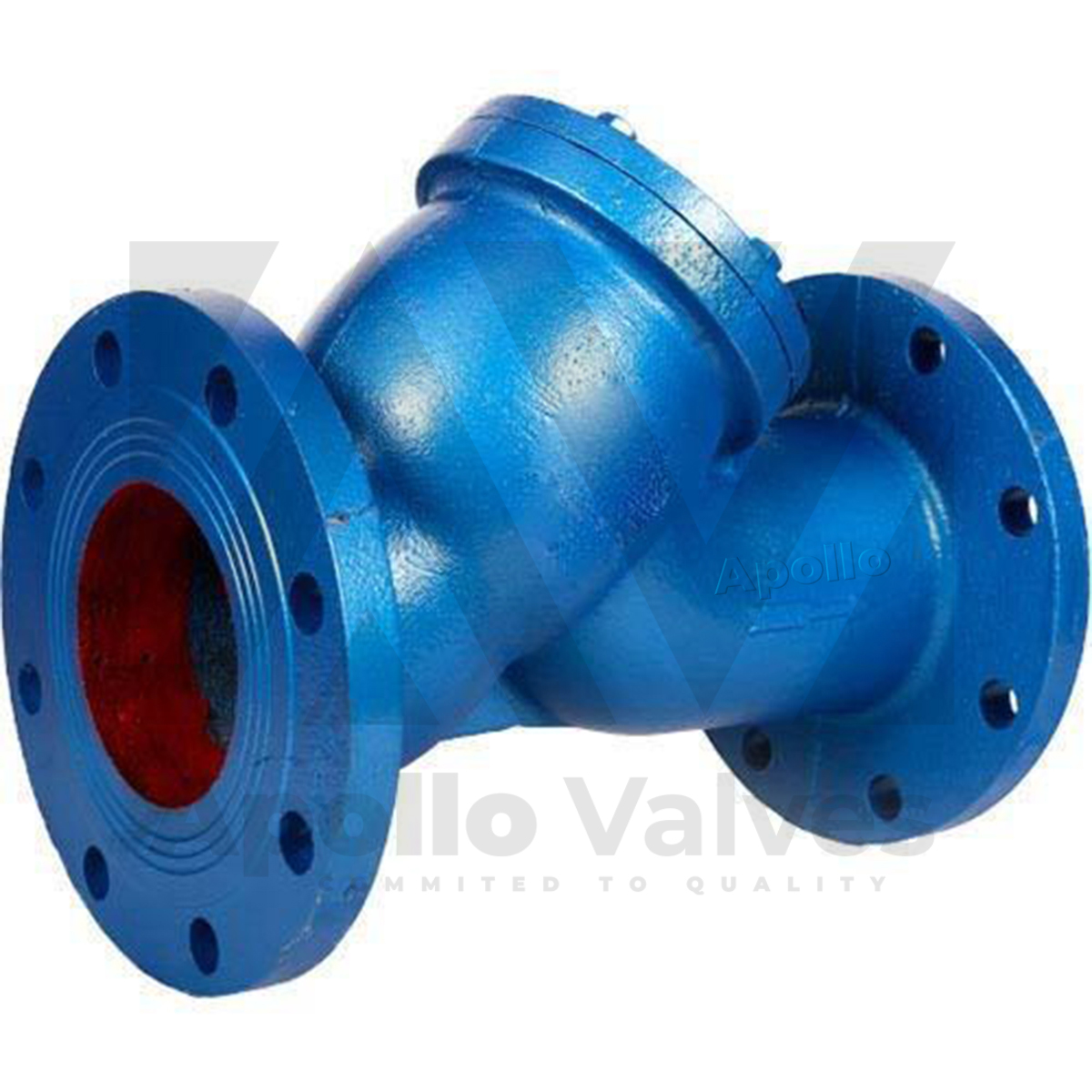

Y Strainer

Y Strainer

  • Body Cover: CI | WCB | CF8 | CF8M
  • Screen: SS 304 | SS 316
  • Ends: Flanged End 150#/300#
  • Hyd Test: Body: 425 Psig
  • Size Range: 15 MM To 300 MM

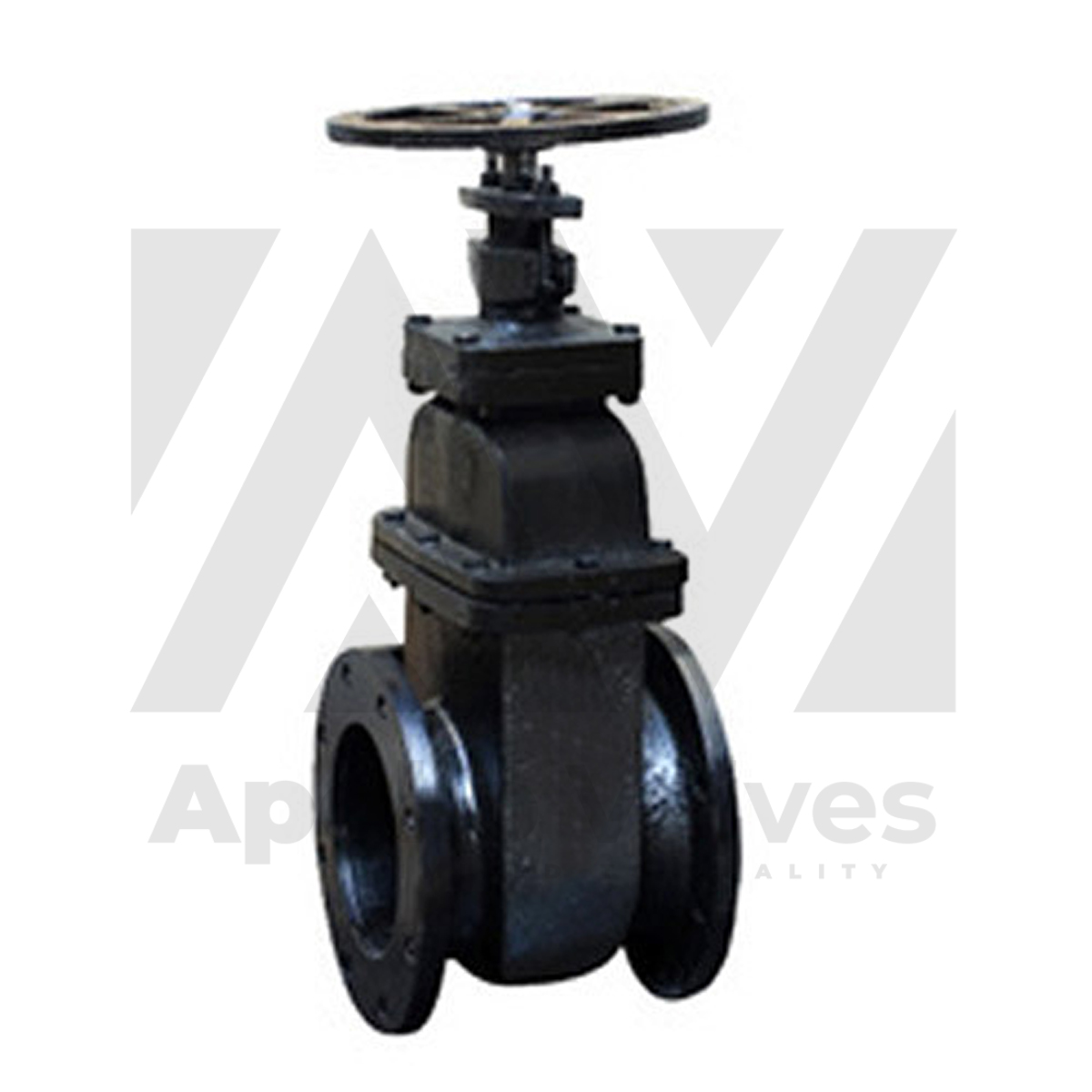

Sluice Valve

Sluice Valve

  • Body/Bonnet: IS 210 Gr FG 200 | WCB
  • Trims: SS 410 | Gun Metal
  • Mfg/Test Std: IS 14846
  • Rating: PN 0.4 | PN 0.6 | PN 1.0
  • Ends: Flanged to IS 1538
  • Operation: Manual | Gear | Electrical
  • Hyd Test: Body: 0.6/0.9/1.5 Mpa | Seat: 0.4/0.6/1.0 Mpa
  • Size Range: 50 MM To 1200 MM

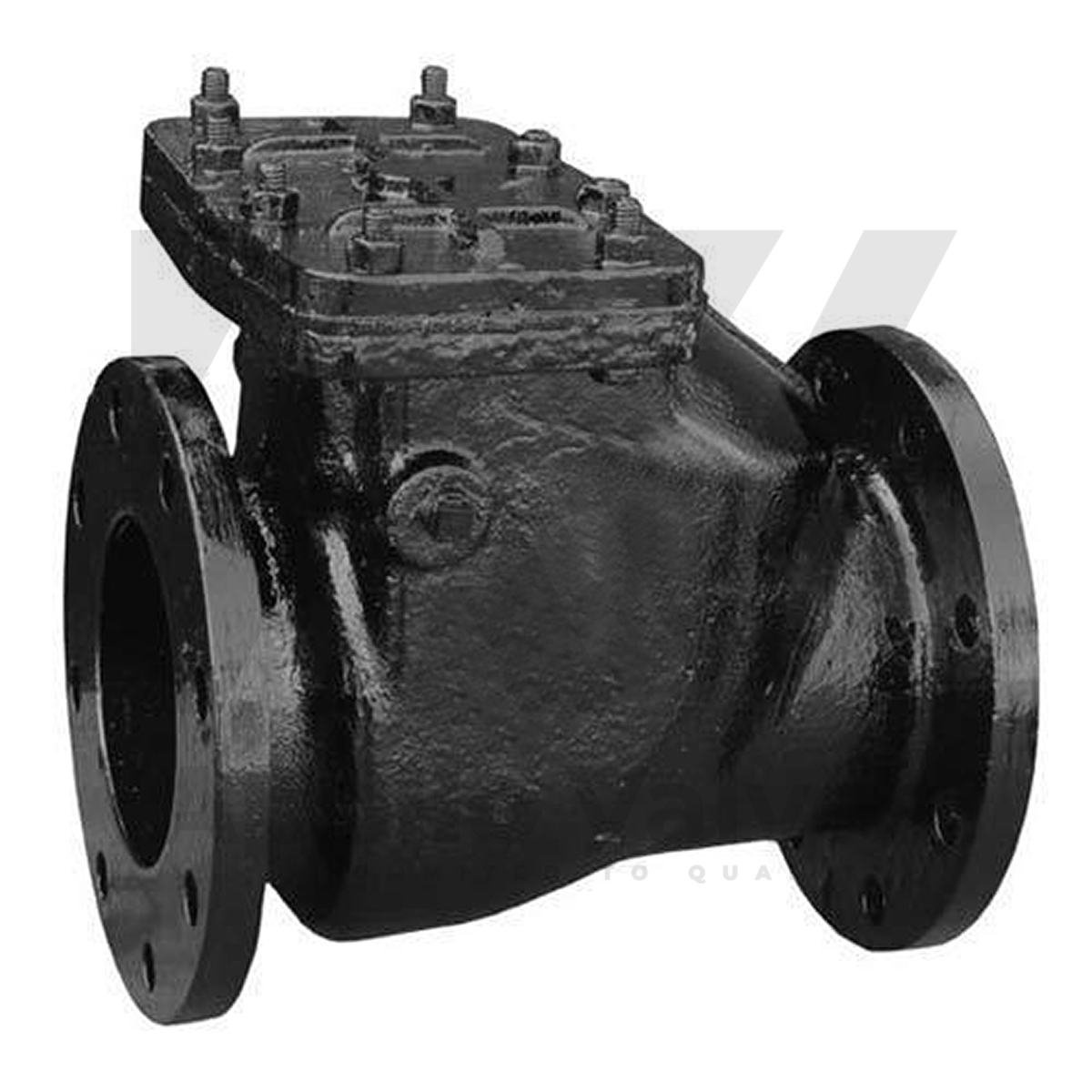

Reflux Valve

Reflux Valve

  • Body/Cover: IS 210 Gr FG 200
  • Trims: Gun Metal
  • Mfg/Test Std: IS 5312 Part I
  • Ends: Flanged to IS 1538
  • Test Pressure: PN 0.6 | PN 1.0 | PN 1.6
  • Size Range: 50 MM To 1000 MM

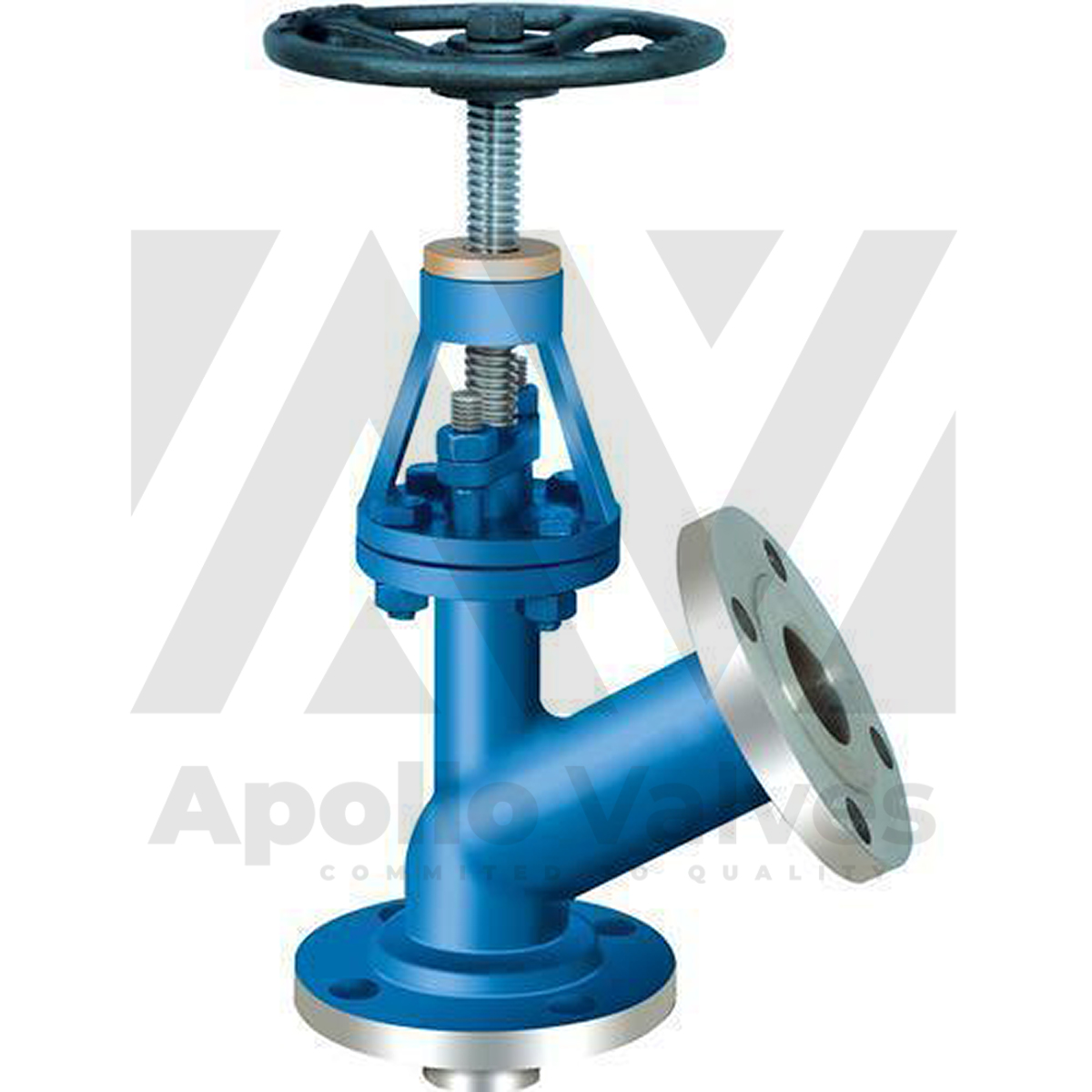

Flush Bottom Tank Valve

Flush Bottom Tank Valve

  • Body/Ball: ASTM A351 Gr CF8 | CF8M
  • Stem: AISI 304 | 316
  • Seat: PTFE
  • Mfg Std: BS 5351
  • Testing: BS 6755
  • Lever: AISI 304 with PVC Sleeve
  • Ends: Flanged ASA 150#
  • Size Range: 50 MM To 200 MM

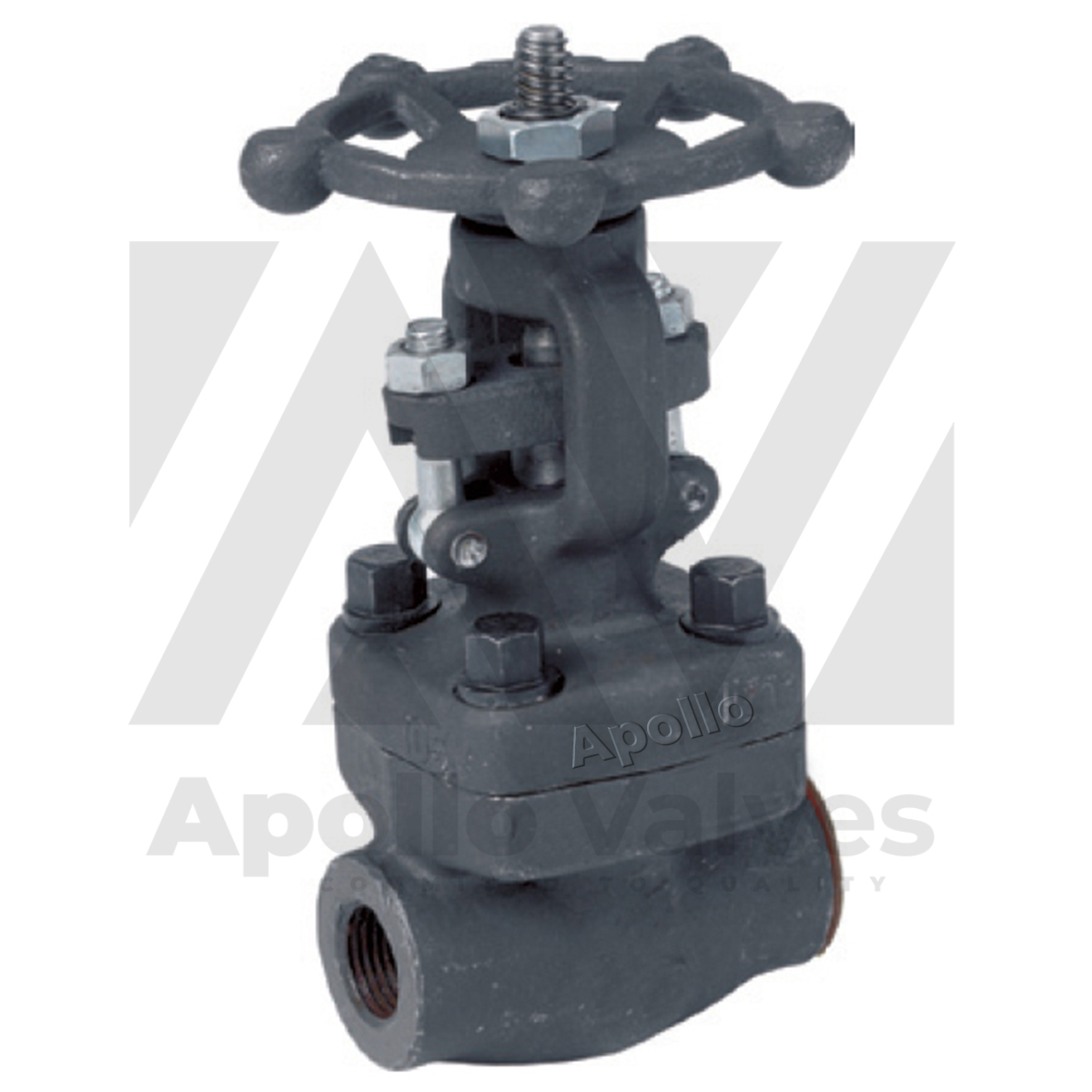

Forged Steel Gate Valve 800

Forged Steel Gate Valve 800

  • Body/Bonnet: ASTM A182 F304 | F316
  • Trims: 18Cr8Ni | 18Cr10Ni2Mo
  • Mfg Std: API 602 | BS 5352
  • Test Std: API 598 | BS 6755
  • Ends: Screwed BSP | Socket Weld ASME B16.11
  • Hyd Test: Body: 3000 Psig | Seat: 2000 Psig
  • Size Range: 15 MM To 50 MM

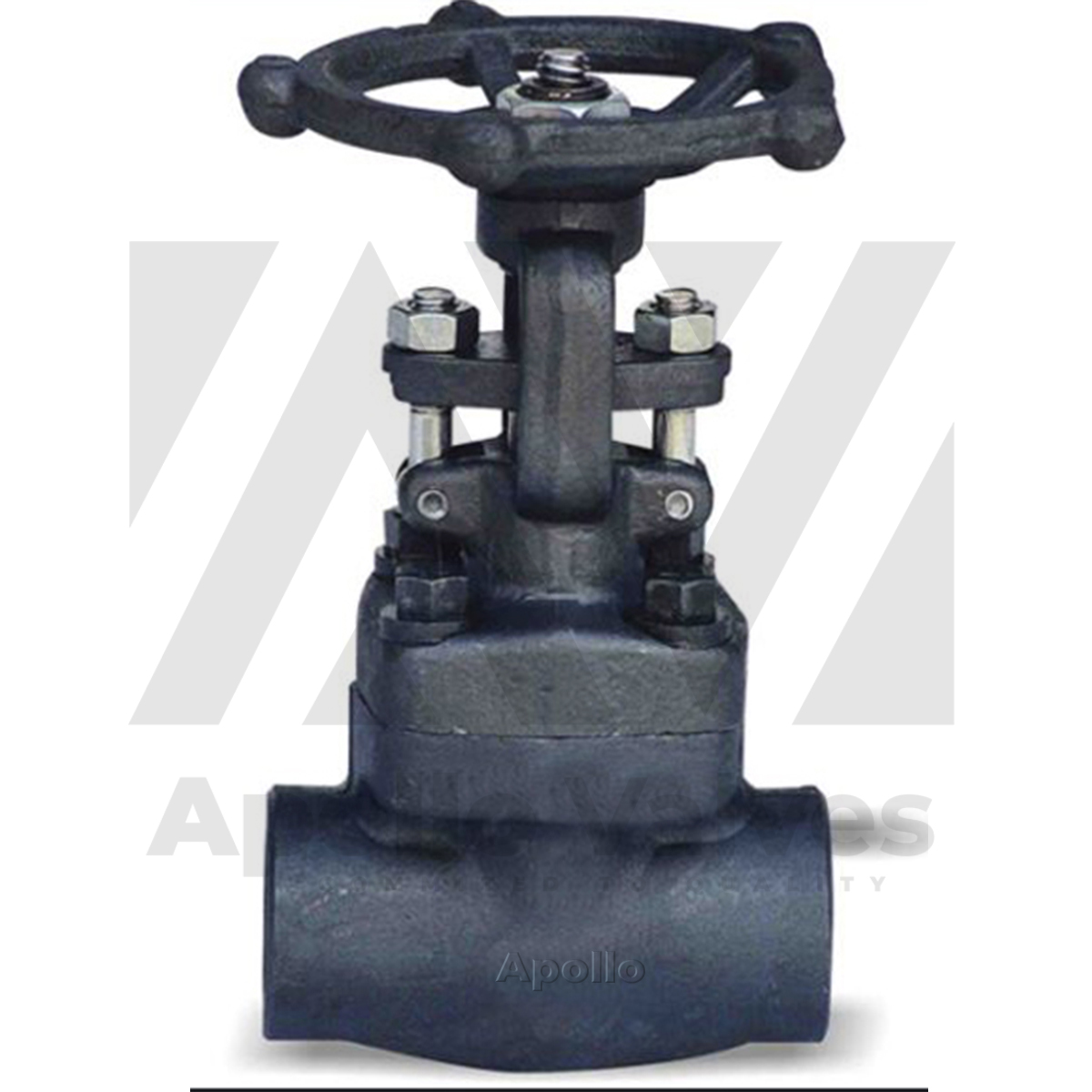

Forged Globe Valve Socket 800

Forged Globe Valve Socket 800

  • Body/Bonnet: ASTM A182 F11 | F22
  • Trims: 13 Cr — AISI 410
  • Mfg Std: API 602 | BS 5352
  • Test Std: API 598 | BS 6755
  • Ends: Screwed | Socket Weld
  • Hyd Test: Body: 3000 Psig | Seat: 2000 Psig
  • Size Range: 15 MM To 50 MM

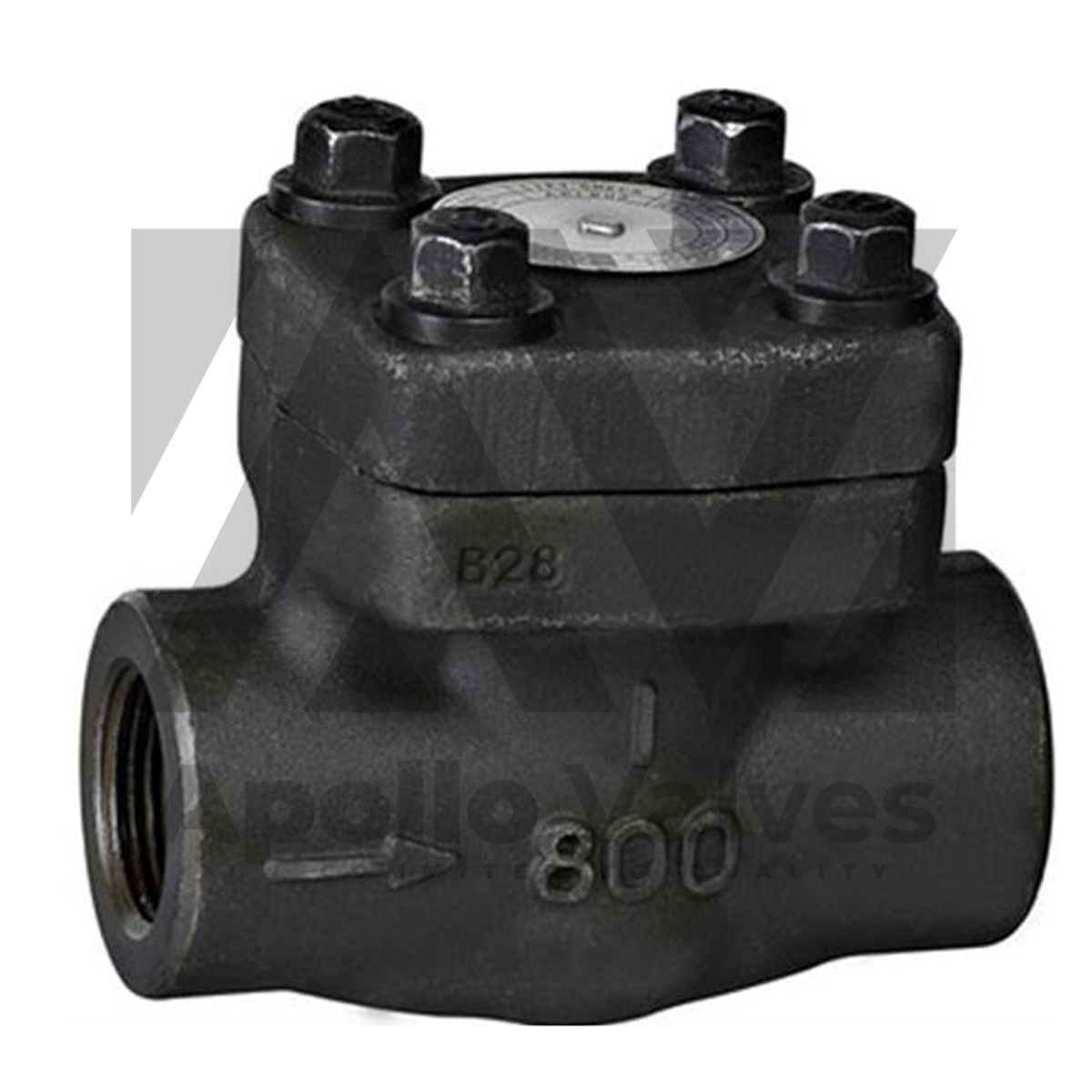

Forged Check Valve 800

Forged Check Valve 800

  • Body/Cover: ASTM A105
  • Trims: 13 Cr
  • Mfg/Test Std: BS 5352 | BS 6755
  • Ends: Screwed | Socket Weld
  • Hyd Test: Body: 3000 Psig | Seat: 2000 Psig
  • Size Range: 15 MM To 50 MM

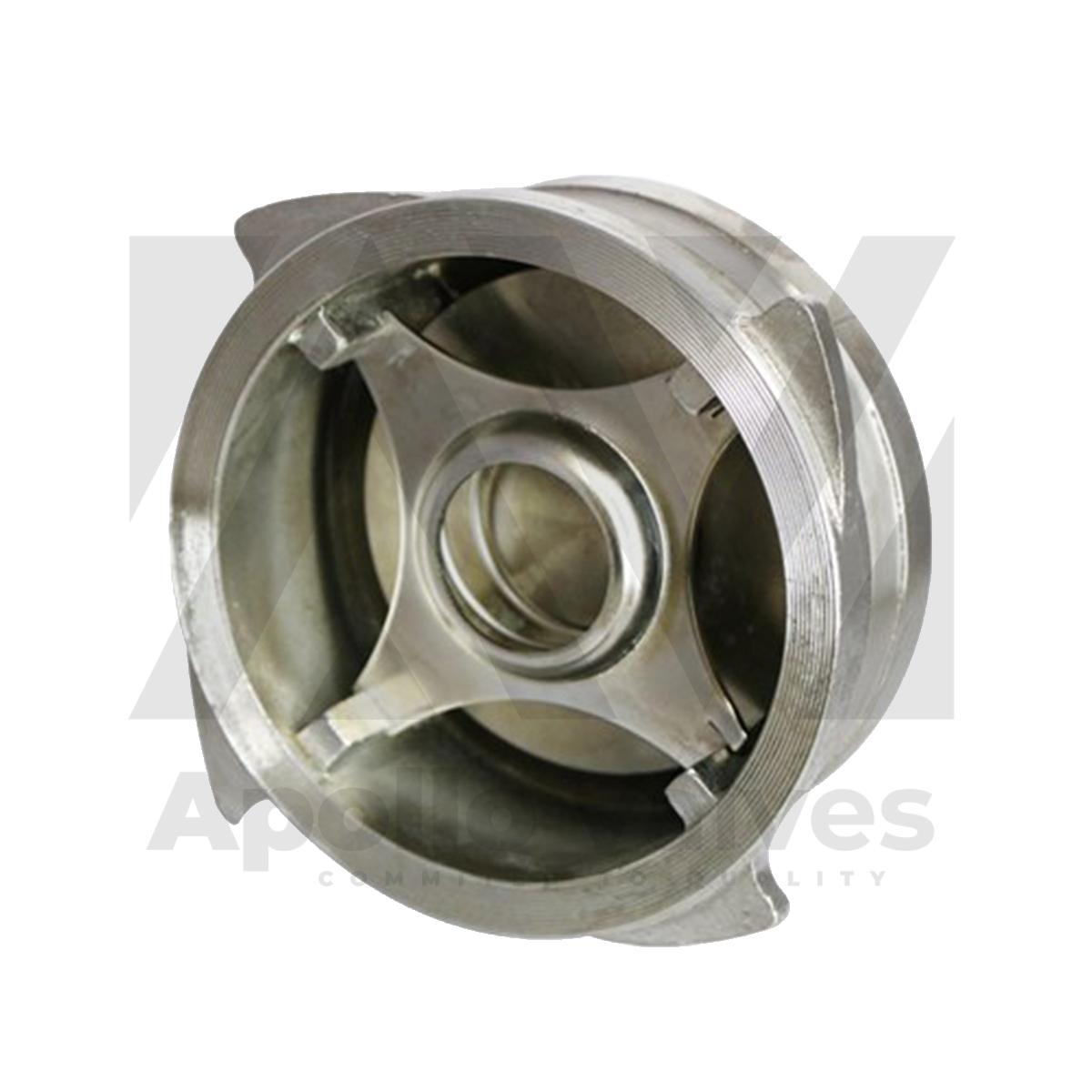

Disc Check Valve Non Slam

Disc Check Valve Non Slam

  • Body: ASTM A361 Gr CF8 | CF8M | CF3 | CF3M
  • Disc: SS 304 | SS 316
  • Spring Retainer: AISI 304 | AISI 316
  • Seat: Metal | EPDM | Nitrile | PTFE
  • Ends: Wafer | Screwed
  • Hyd Test: Body: 854 Psig | Seat: 569 Psig
  • Size Range: 15 MM To 200 MM

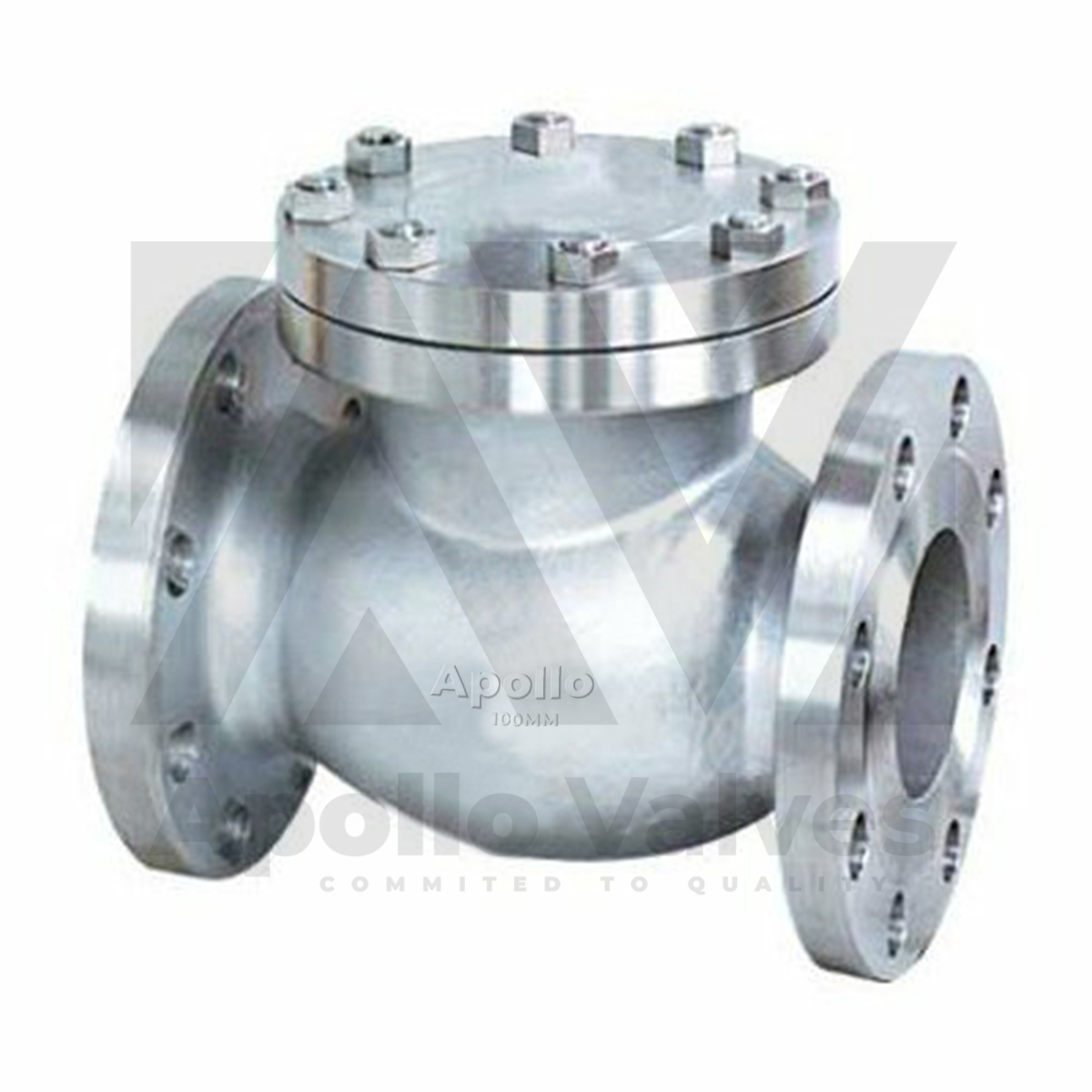

Swing Check Valve

Swing Check Valve

  • Body: ASTM A216 Gr WCB | WC1 | WC6 | WC9 | LCB
  • Trims: 13 Cr | 18 Cr 8 Ni
  • Mfg Std: BS 1868
  • Test Std: BS 6755
  • Ends: Flanged ASME B16.5 RF
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 25 MM To 1200 MM

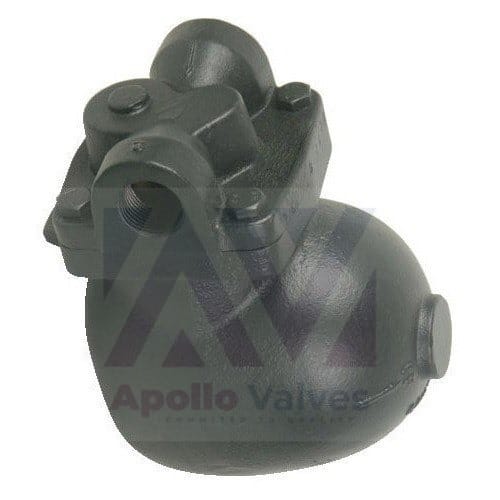

Ball Float Valve

Ball Float Valve

  • Body: ASTM A216 Gr WCB
  • Mfg Std: IS 12268
  • Max Pressure: 10.54 Kg/Cm²
  • Ends: Screwed | Socket Weld
  • Size Range: 15 MM To 50 MM

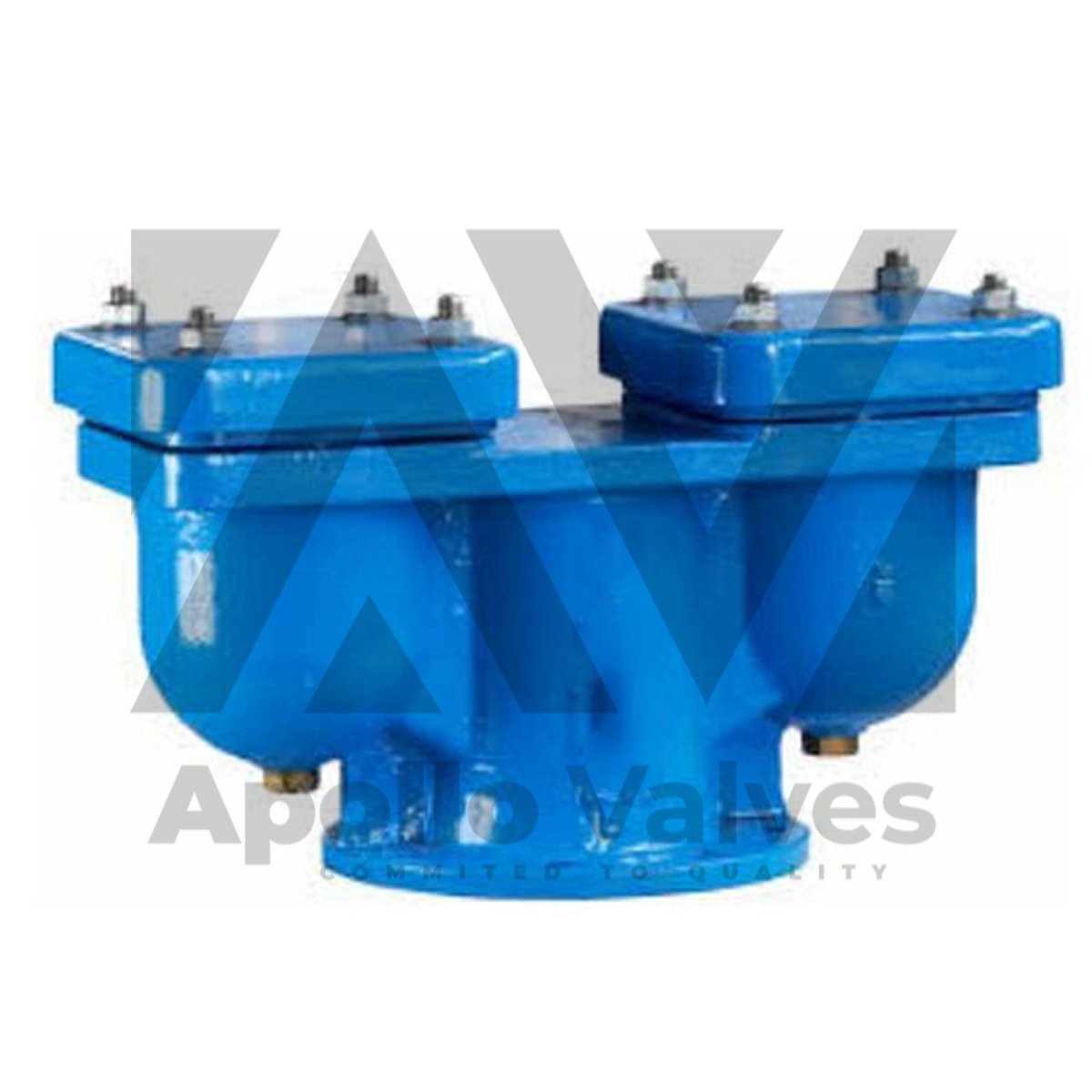

Double Air Valve

Double Air Valve

  • Body: IS 210 FG 200
  • Trims: AISI 410
  • Ball: Neoprene Coated Timber
  • Max CWP: 100 Psig
  • Ends: Flanged BS 10 Table D | ASME B16.1
  • Size Range: 25 MM To 250 MM

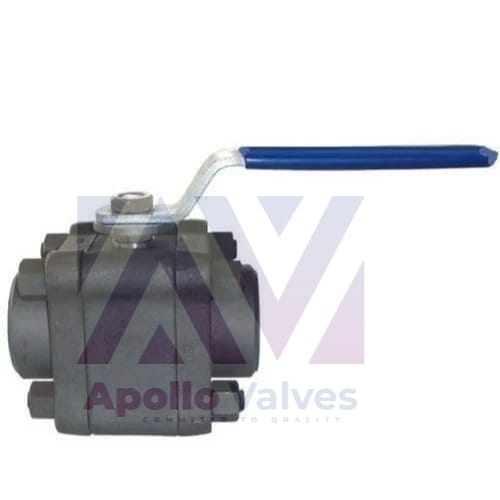

Forged Ball Valve 800

Forged Ball Valve 800

  • Body: ASTM A105
  • Ball/Stem: AISI 304 | CF8
  • Seat: PTFE
  • Mfg Std: BS 5351 | BS 5159
  • Ends: Screwed | Socket Weld
  • Test Pressure: Body: 211 Kg/cm²
  • Size Range: 15 MM To 50 MM

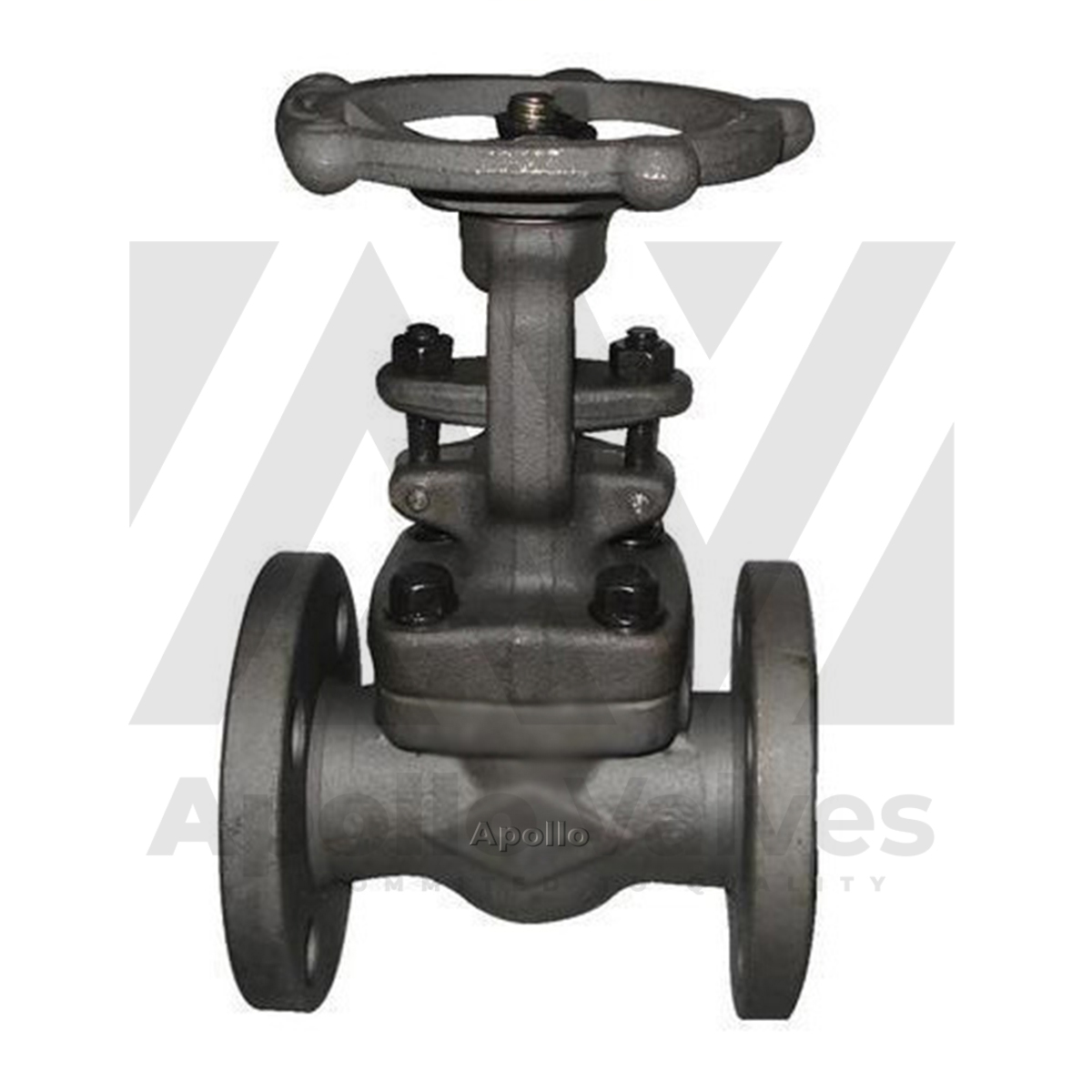

Forged Steel Gate Valve Flange End

Forged Steel Gate Valve Flange End

  • Body: ASTM A182 Gr F304 | F316
  • Trims: 18 Cr 8 Ni | 18 Cr 10 Ni 2 Mo
  • Mfg Std: API 602 | BS 5352
  • Test Std: API 598 | BS 6755
  • Ends: Flanged End
  • Test Pressure: Body: 3000 Psig | Seat: 2000 Psig
  • Size Range: 15 MM To 50 MM

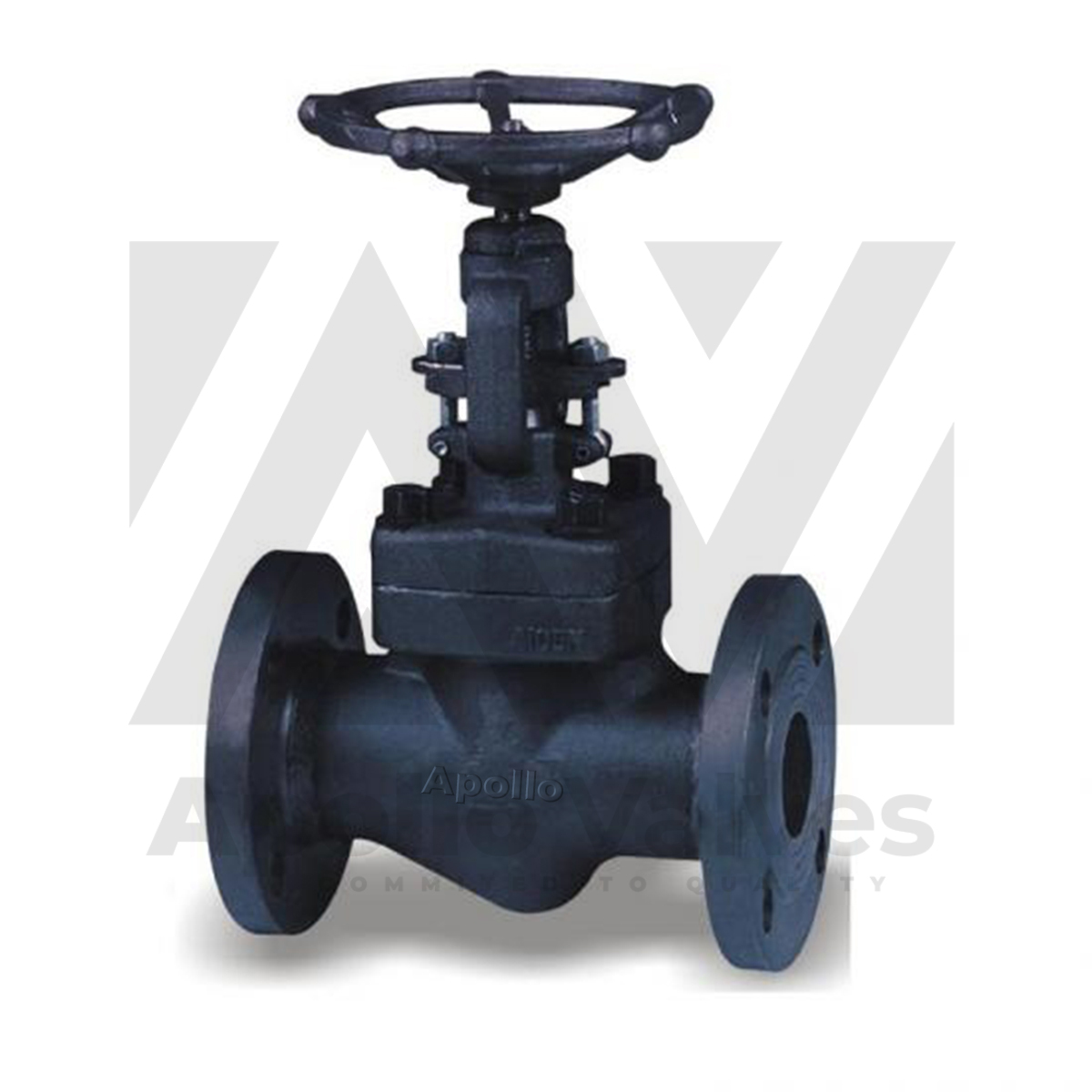

Forged Globe Valve Flanged End

Forged Globe Valve Flanged End

  • Body: ASTM A182 Gr F-11 | F-22
  • Trims: 13 Cr — AISI 410
  • Mfg Std: API 602 | BS 5352
  • Test Std: API 598 | BS 6755
  • Ends: Flanged End
  • Test Pressure: Body: 3000 Psig | Seat: 2000 Psig
  • Size Range: 15 MM To 50 MM

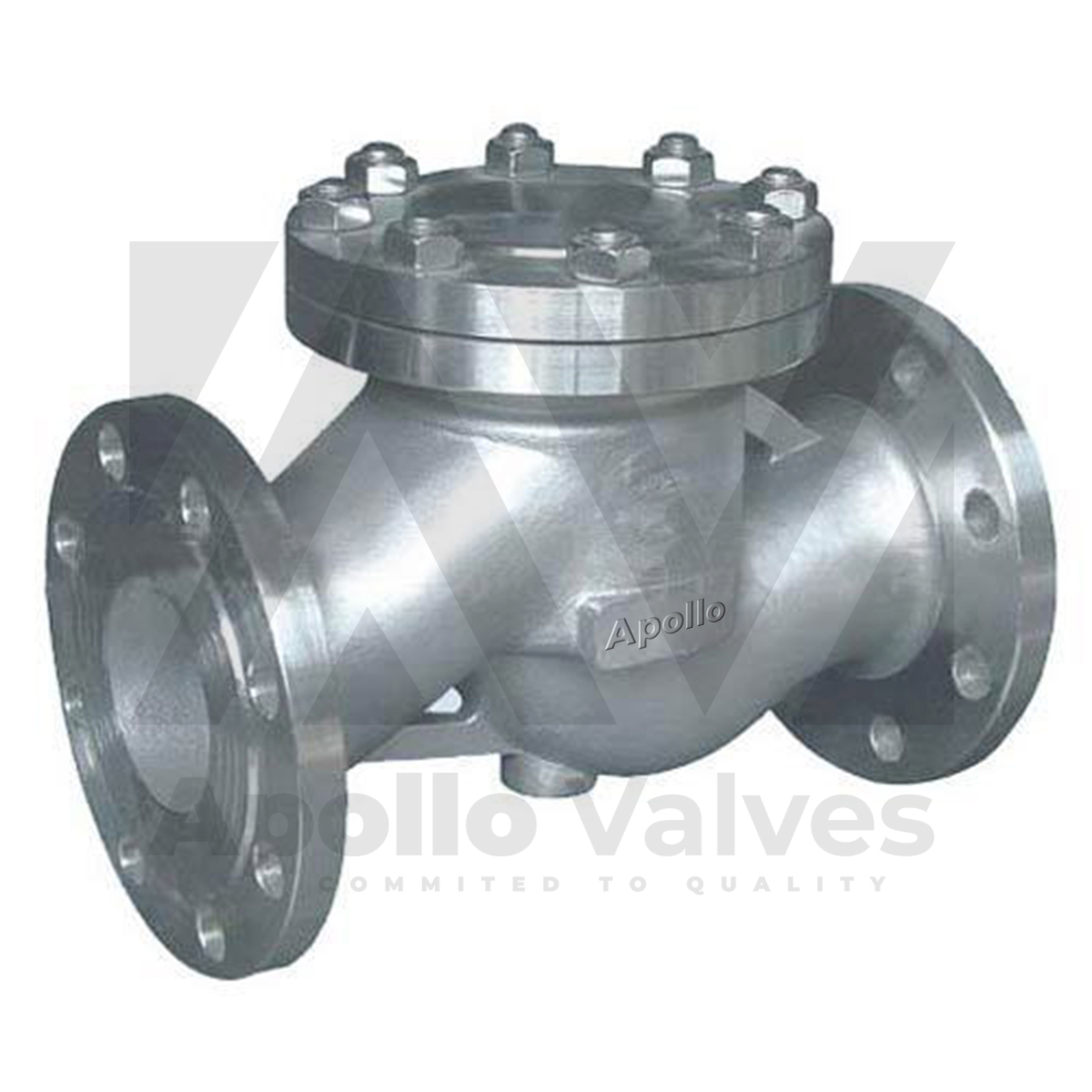

Lift Type Check Valve

Lift Type Check Valve

  • Body: ASTM A216 Gr WCB | WC1 | WC6 | WC9 | LCB
  • Trims: 13 Cr | 18 Cr 8 Ni
  • Mfg Std: BS 1868 | DIN 3356
  • Test Std: BS 6755
  • Ends: Flanged to DIN 2545
  • Test Pressure: Body: 854 Psig | Seat: 569 Psig
  • Size Range: 15 MM To 300 MM
Ball Valve Single Piece Design

Ball Valve Single Piece Design

  • Body: ASTM A351 Gr CF8 | CF8M | CF3 | CF3M
  • Balls: ASTM A351 Gr CF8 | CF8M | CF3 | CF3M
  • Stem: AISI 304 | AISI 316
  • Mfg Std: BS 5351 | ISO 17292
  • Test Std: BS 6755
  • Ends: Screwed to BSP | BSPT | NPT | IS 554
  • Size Range: 8 MM To 100 MM

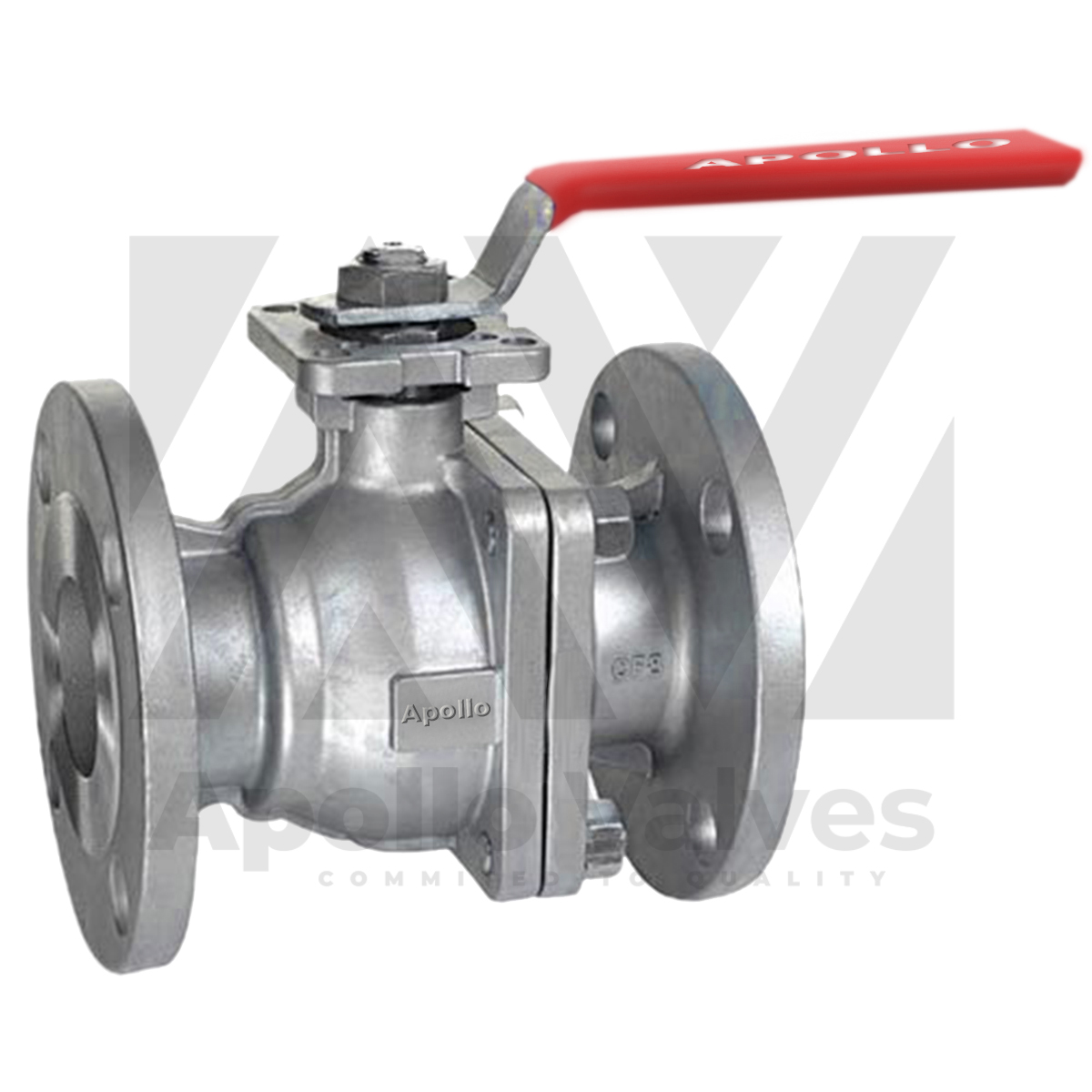

Ball Valve Flanged End 2 Piece Design

Ball Valve Flanged End 2 Piece Design

  • Body: ASTM A216 Gr WCB | SS 304 | SS 316
  • Ball: AISI 304 | CF8
  • Stem: AISI 304
  • Seat: PTFE
  • Mfg Std: BS 5351 | ISO 17292
  • Ends: Flanged ASME B16.5 RF (300#)
  • Hyd Test: Body: 1100 Psig | Seat: 100 Psig
  • Size Range: 15 MM To 300 MM
Ball Valve Flanged End Extended Shaft

Ball Valve Flanged End Extended Shaft

  • Body: ASTM A216 Gr WCB | SS 304 | SS 316
  • Ball: AISI 304 | CF8
  • Stem: AISI 304
  • Seat: PTFE
  • Mfg Std: BS 5351 | ISO 17292
  • Ends: Flanged ASME B16.5 RF (300#)
  • Hyd Test: Body: 1100 Psig | Seat: 100 Psig
  • Size Range: 15 MM To 300 MM
Flush Bottom Ball Valve

Flush Bottom Ball Valve

  • Body/Ball: ASTM A351 Gr CF8 | CF8M
  • Stem: AISI 304 | 316
  • Seat: PTFE
  • Mfg Std: BS 5351
  • Ends: Flanged ASA 150#
  • Size Range: 50x50 MM To 100x100 MM

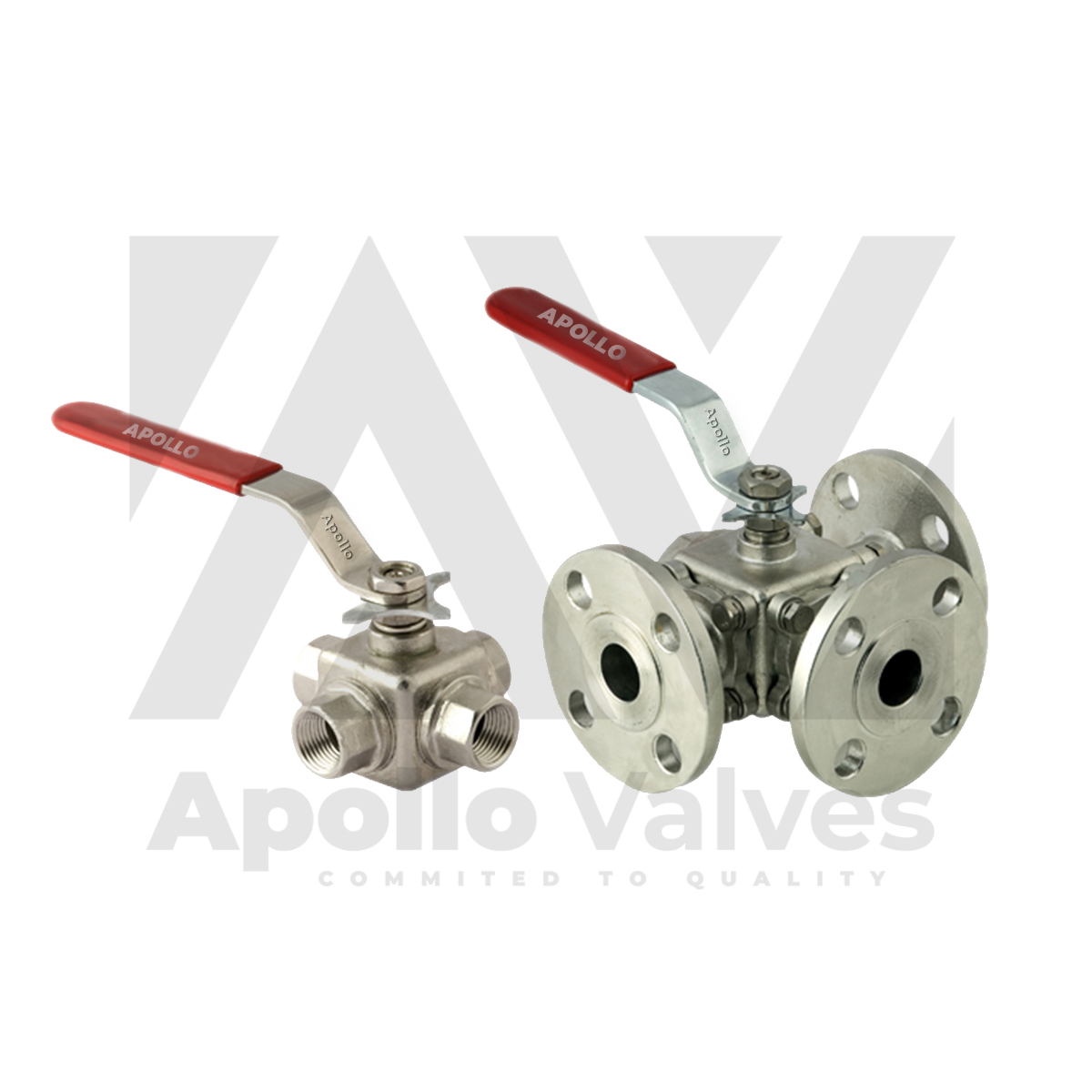

3 Way Ball Valve

3 Way Ball Valve

  • Body: WCB | ASTM A351 Gr CF8 | CF8M
  • Seat: PTFE | GFT
  • Port: L | T
  • Operating Temp: 180°C To 250°C
  • Ends: Screwed | Socket Weld | Flanged 150#/300#
  • Operation: Lever | Gear
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 15 MM To 300 MM

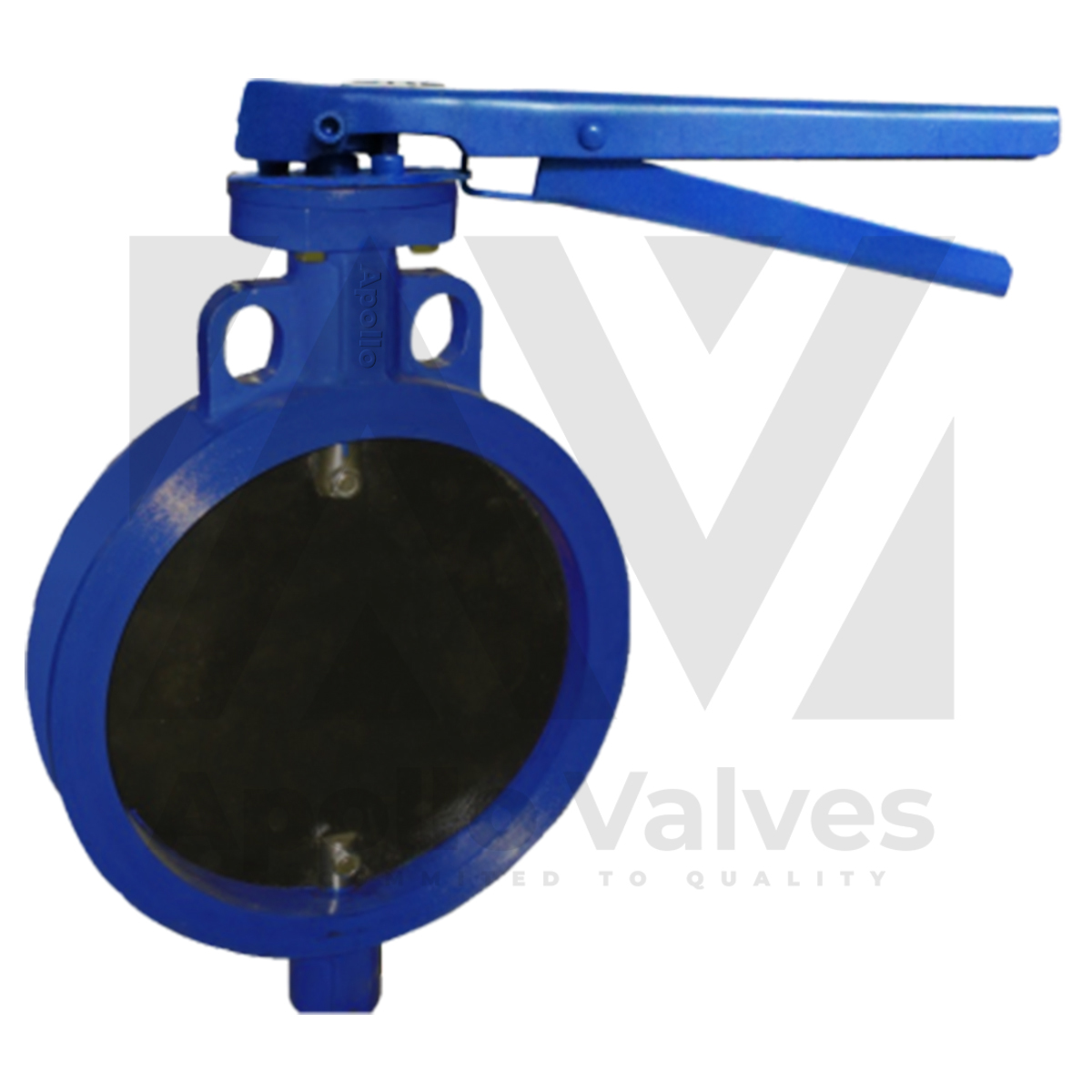

Damper Valve

Damper Valve

  • Body: IS 210 FG 200/220 | WCB
  • Seat: Metal To Metal
  • Rating: PN 6
  • Operating Temp: 500°C
  • Ends: Wafer | Double Flange
  • Operation: Lever | Gear | Pneumatic | Electrical
  • Size Range: 40 MM To 500 MM

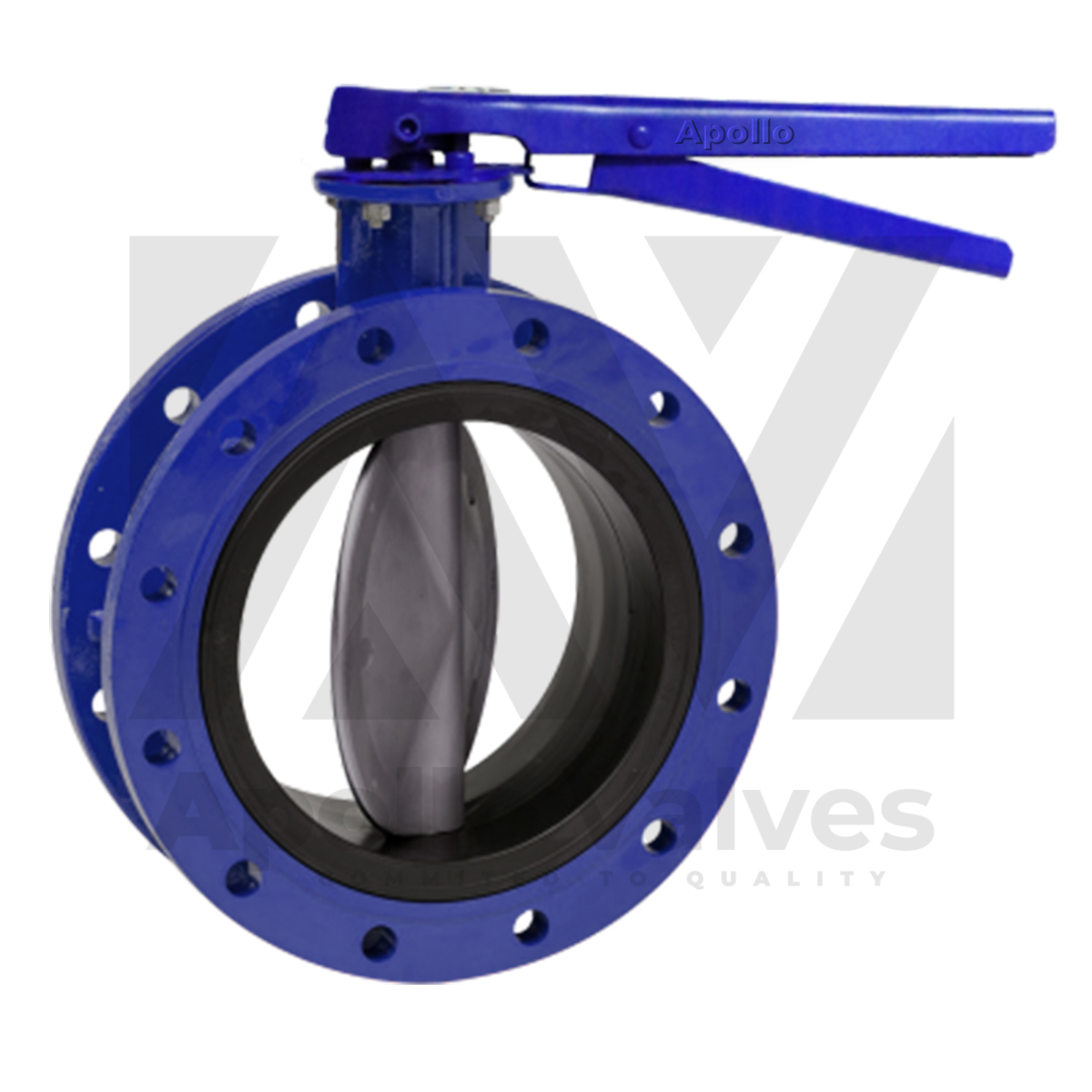

Double Flange Butterfly Valve

Double Flange Butterfly Valve

  • Body: CI | WCB | SS 304 | 316
  • Disc: SG Iron | CF8
  • Seat: Nitrile | EPDM
  • Mfg/Test Std: BS EN 593 | API 609
  • Ends: Flanged ASME B16.5 (150#)
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig

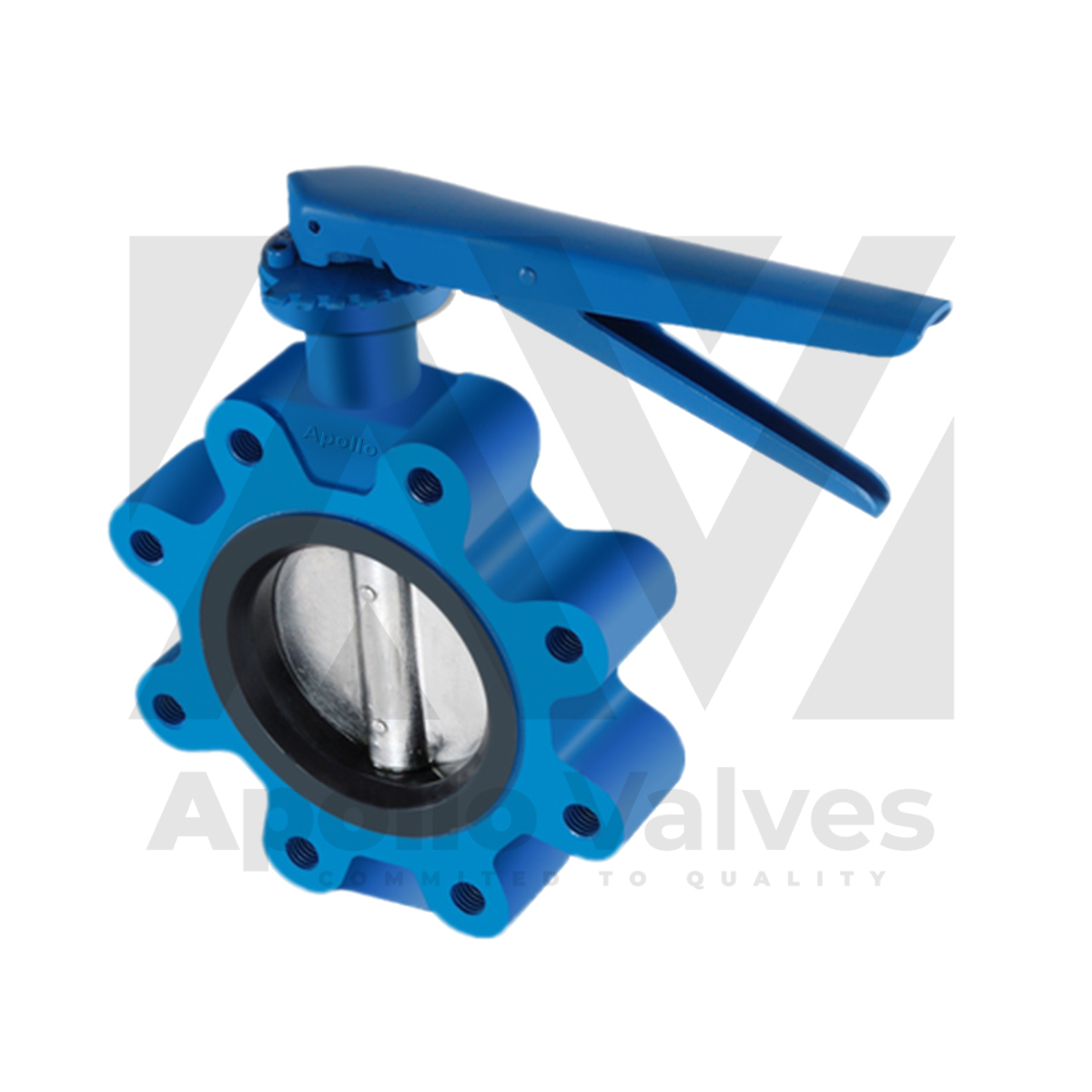

Lug Type Butterfly Valve

Lug Type Butterfly Valve

  • Body: CI | WCB | SS 304 | 316
  • Seat: Nitrile | EPDM | PTFE
  • Mfg/Test Std: BS 5155 | BS 6755
  • Ends: Wafer Lugged
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig

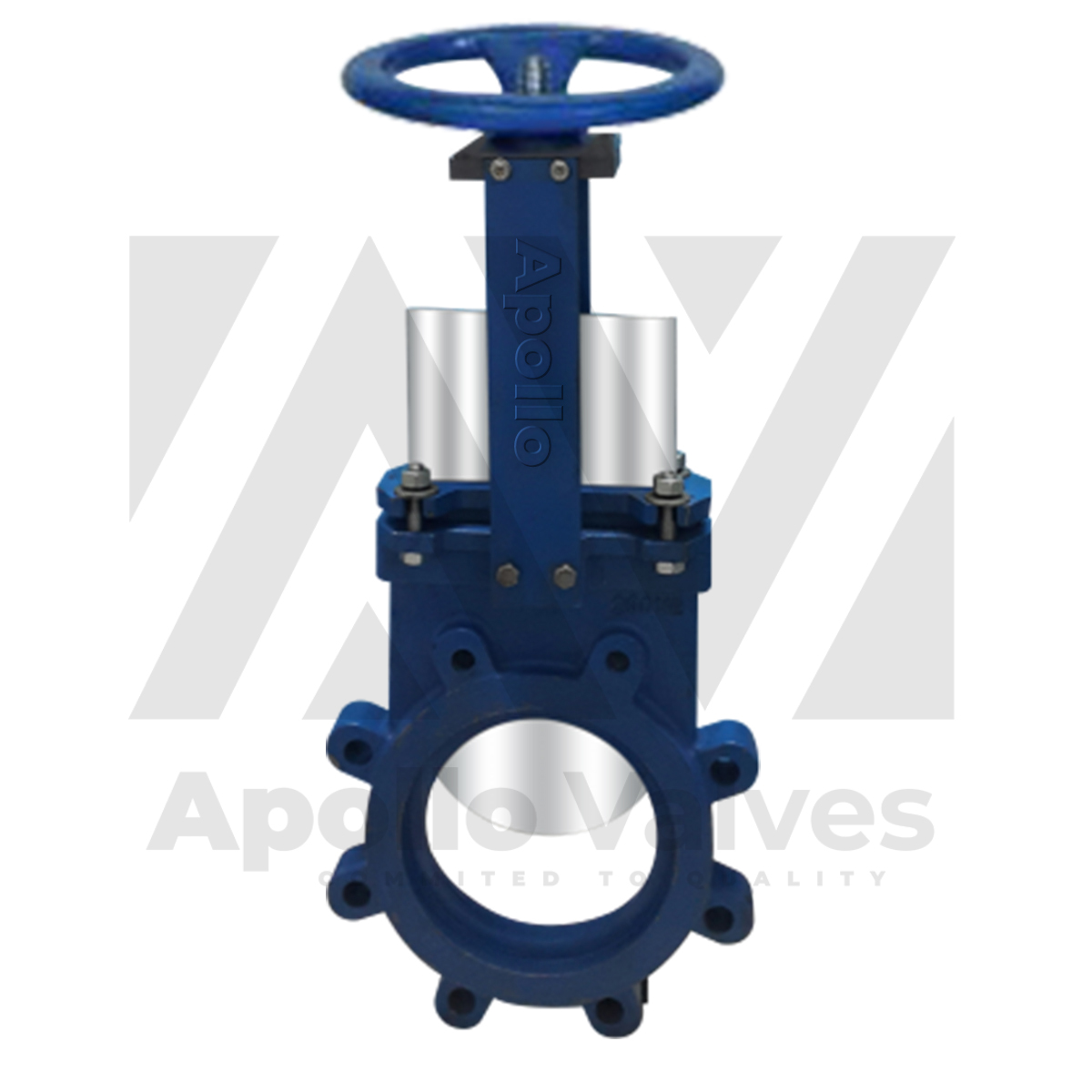

Knife Gate Valve Lug Type

Knife Gate Valve Lug Type

  • Body: WCB | CF8 | CF8M | CF3 | CF3M
  • Seat: Nitrile | EPDM | PTFE | Metal
  • Leakage Class: Class VI
  • Ends: Lugged ASME B16.5 RF
  • Hyd Test: Body: 71 Psig | Seat: 40 Psig
  • Size Range: 50 MM To 600 MM
Square Body Knife Gate Valve Lug Type

Square Body Knife Gate Valve Lug Type

  • Body: ASTM A216 Gr WCB | CF8 | CF8M | CF3 | CF3M
  • Seat: Nitrile | EPDM | PTFE | Metal
  • Leakage Class: Class VI
  • Ends: Fabricated Square Type
  • Hyd Test: Body: 71 Psig | Seat: 40 Psig
  • Size Range: 50 MM To 600 MM

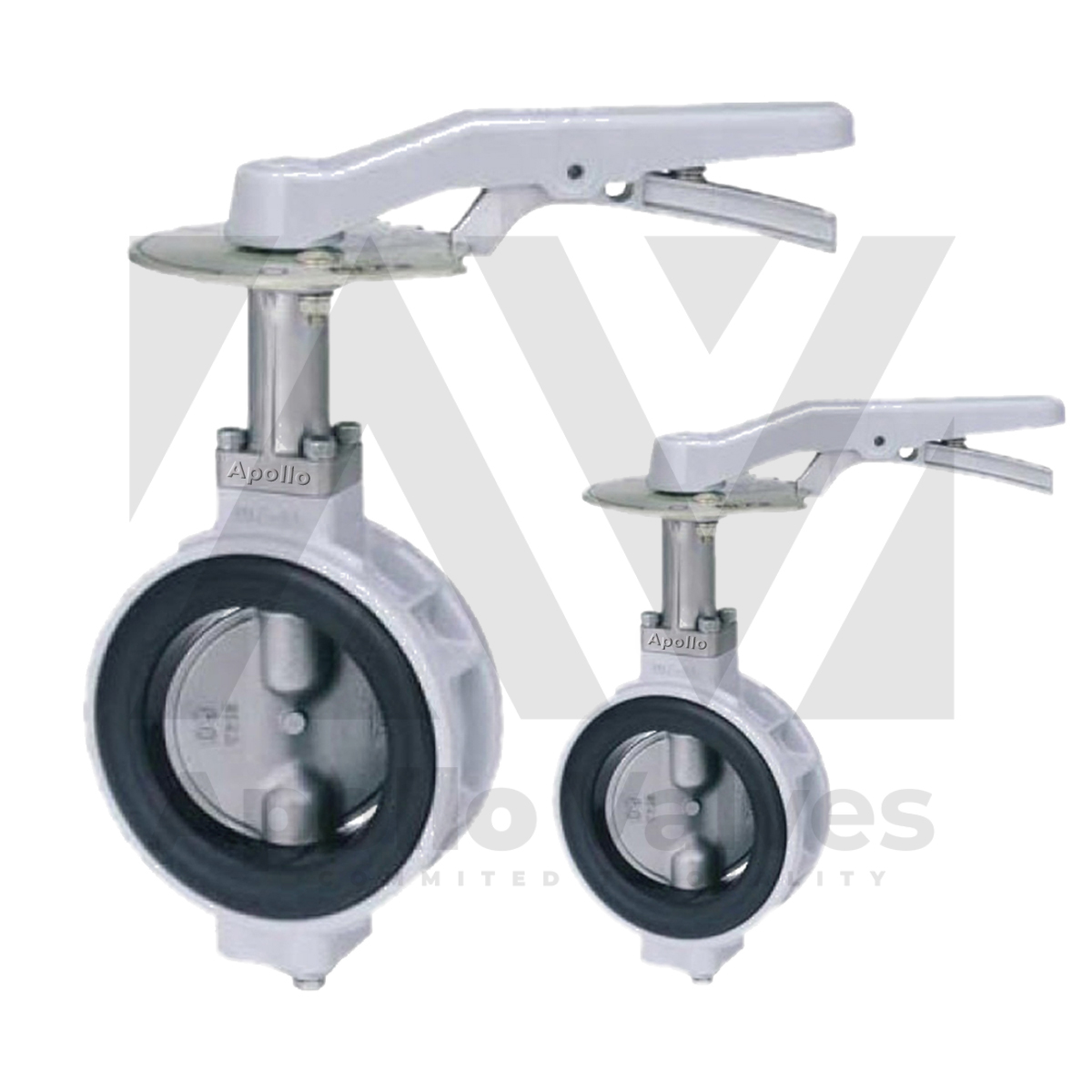

Aluminium Butterfly Valve

Aluminium Butterfly Valve

  • Body: Aluminium
  • Disc: CF8 | CF8M
  • Seat: Nitrile | EPDM
  • Mfg/Test Std: BS 5155 | IS 13095
  • Hyd Test: Body: 225 Psig | Seat: 165 Psig
  • Size Range: 50 MM To 150 MM

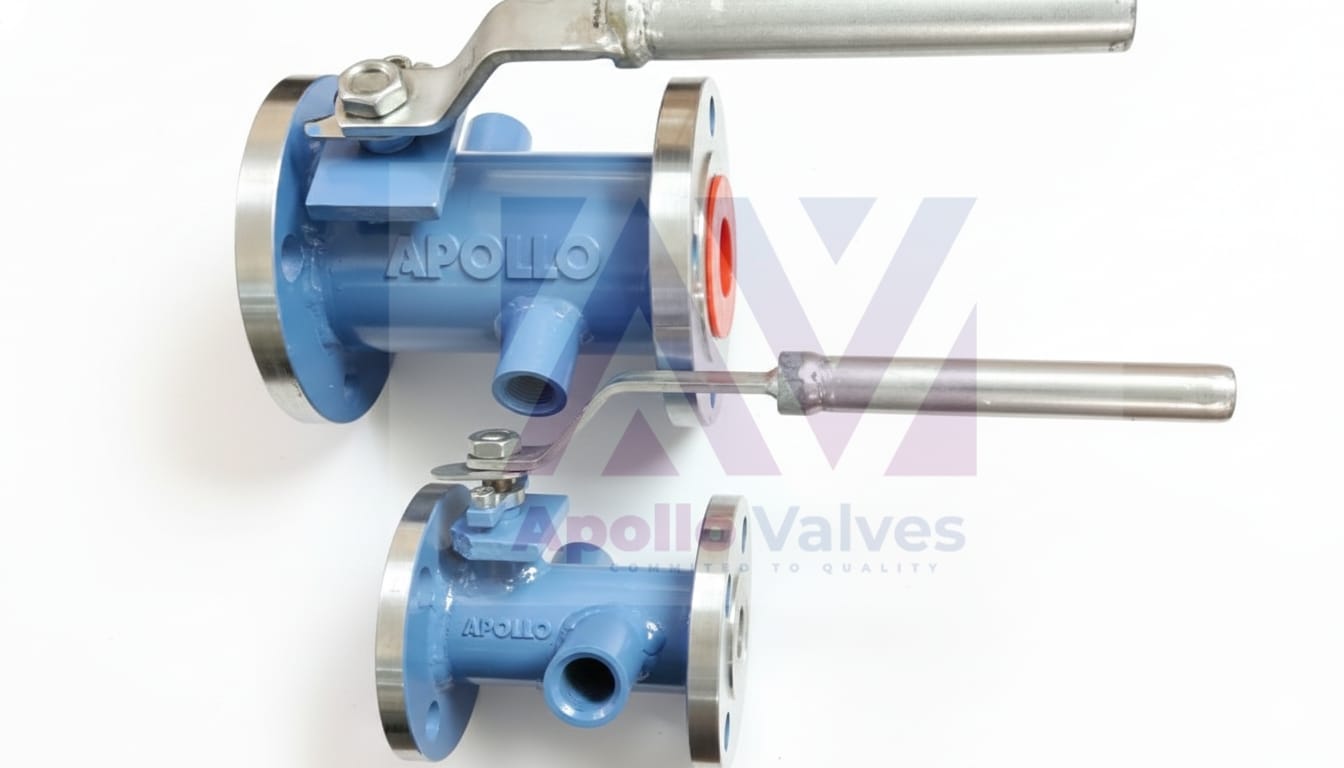

Jacketed Ball Valve

Jacketed Ball Valve

  • Body/Jacket: WCB | CF8 | CF8M
  • Seat: PTFE
  • Mfg Std: BS 5351 | ISO 17292
  • Ends: Flanged 150#/300#
  • Hyd Test: Body: 1100 Psig | Seat: 100 Psig
  • Size Range: 50 MM To 200 MM
Jacketed Flush Bottom Tank Valve

Jacketed Flush Bottom Tank Valve

  • Body: CF8 | CF8M | CF3M
  • Jacket: CF8 | CF8M
  • Ends: Flanged BS 10 | ASME B16.5
  • Hyd Test: Body: 425 Psig | Seat: 300 Psig
  • Size Range: 25 MM To 200 MM

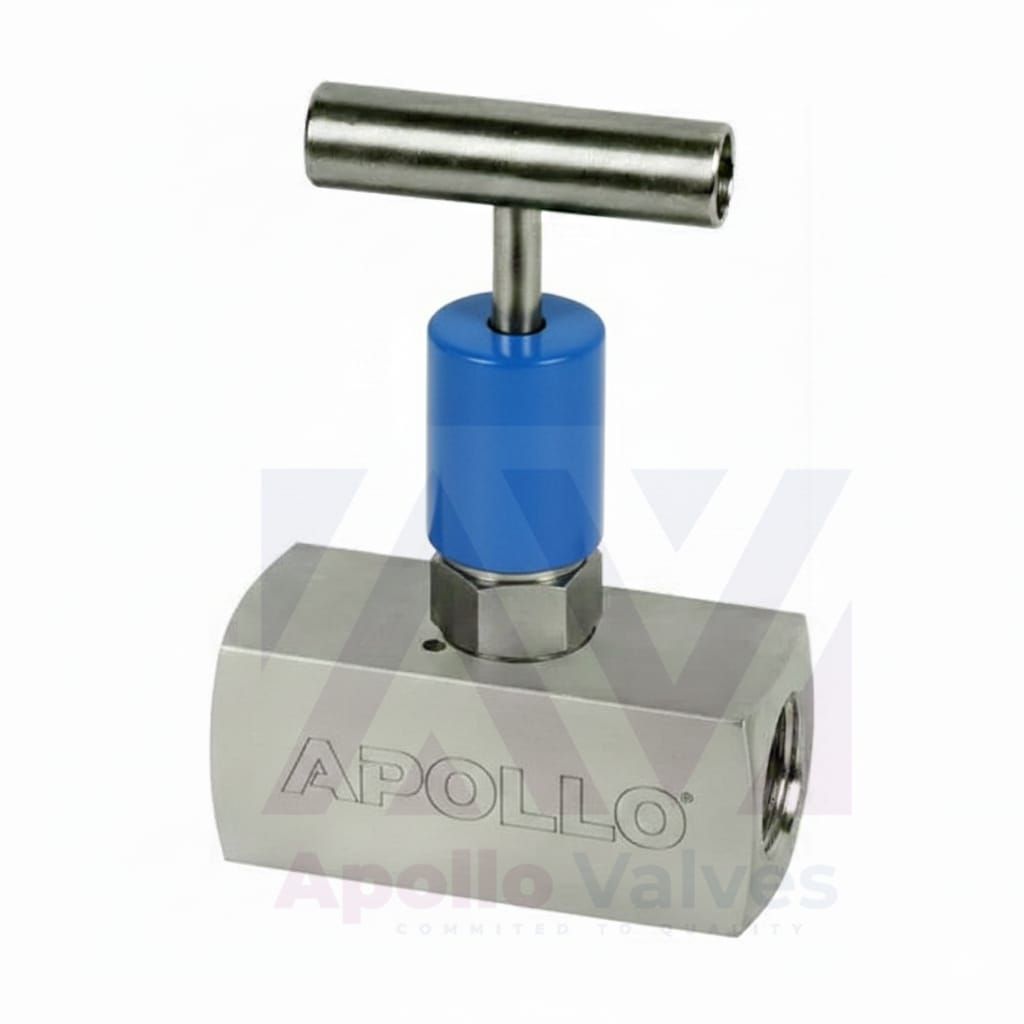

Needle Valve

Needle Valve

  • MOC: AISI 304 | 316
  • Ends: Screwed | Socket Weld
  • Hyd Test: Body: 1100 Psig | Seat: 800 Psig
  • Size Range: 8 MM To 50 MM

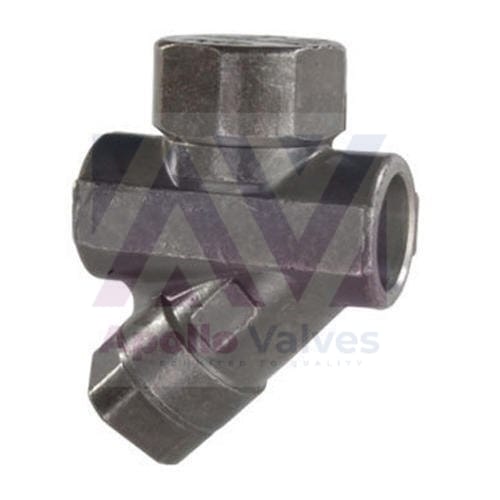

Thermodynamic Steam Trap

Thermodynamic Steam Trap

  • Body: CF8 | CA15
  • Max Pressure: 32 Kg/Cm²
  • Ends: Screwed BSP
  • Hyd Test: 911 Psig
  • Size Range: 15 MM To 25 MM

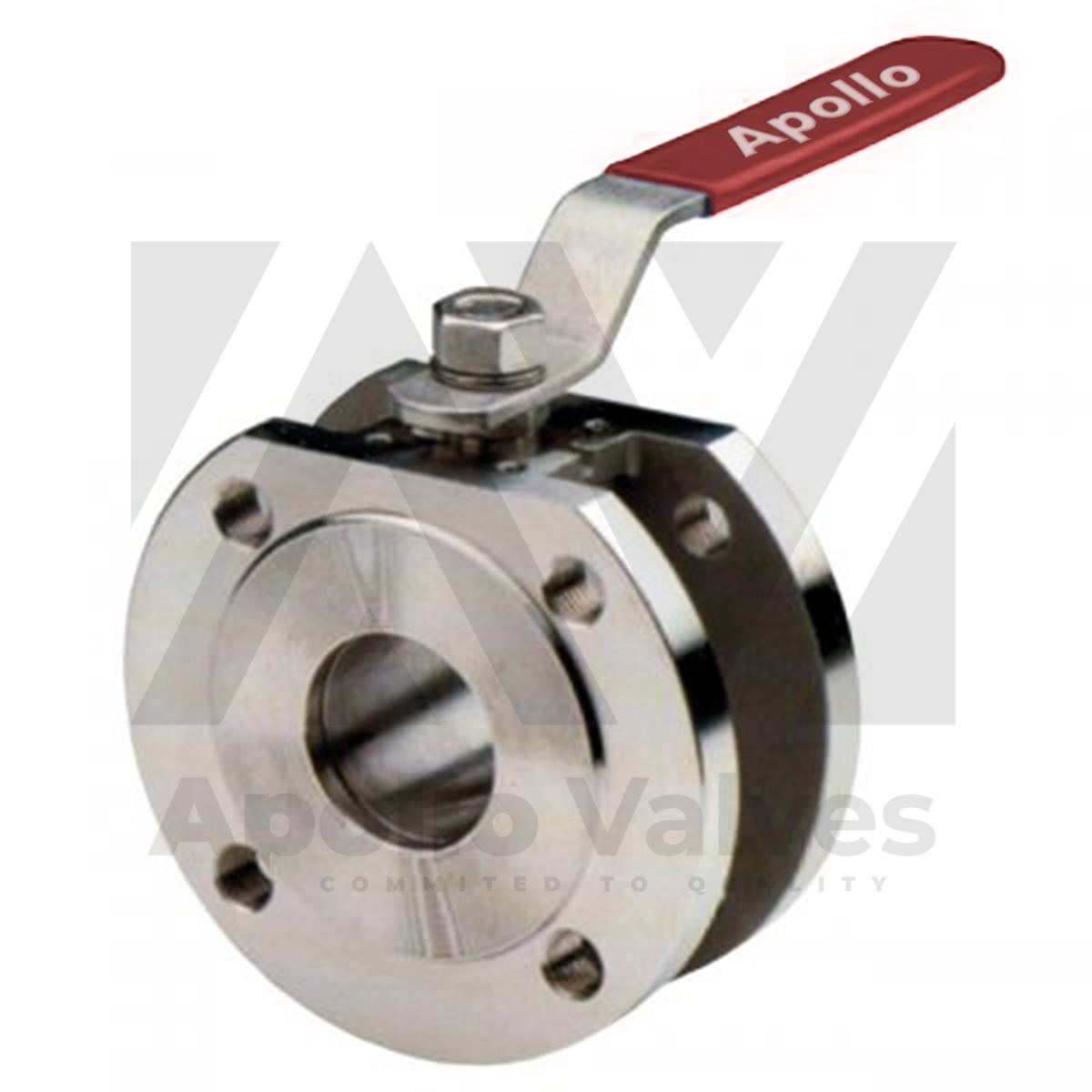

Wafer Ball Valve

Wafer Ball Valve

  • Body: WCB | CF8 | CF8M
  • Seat: PTFE
  • Ends: Wafer Type 150#
  • Hyd Test: Body: 1100 Psig | Seat: 100 Psig
  • Size Range: 25 MM To 200 MM

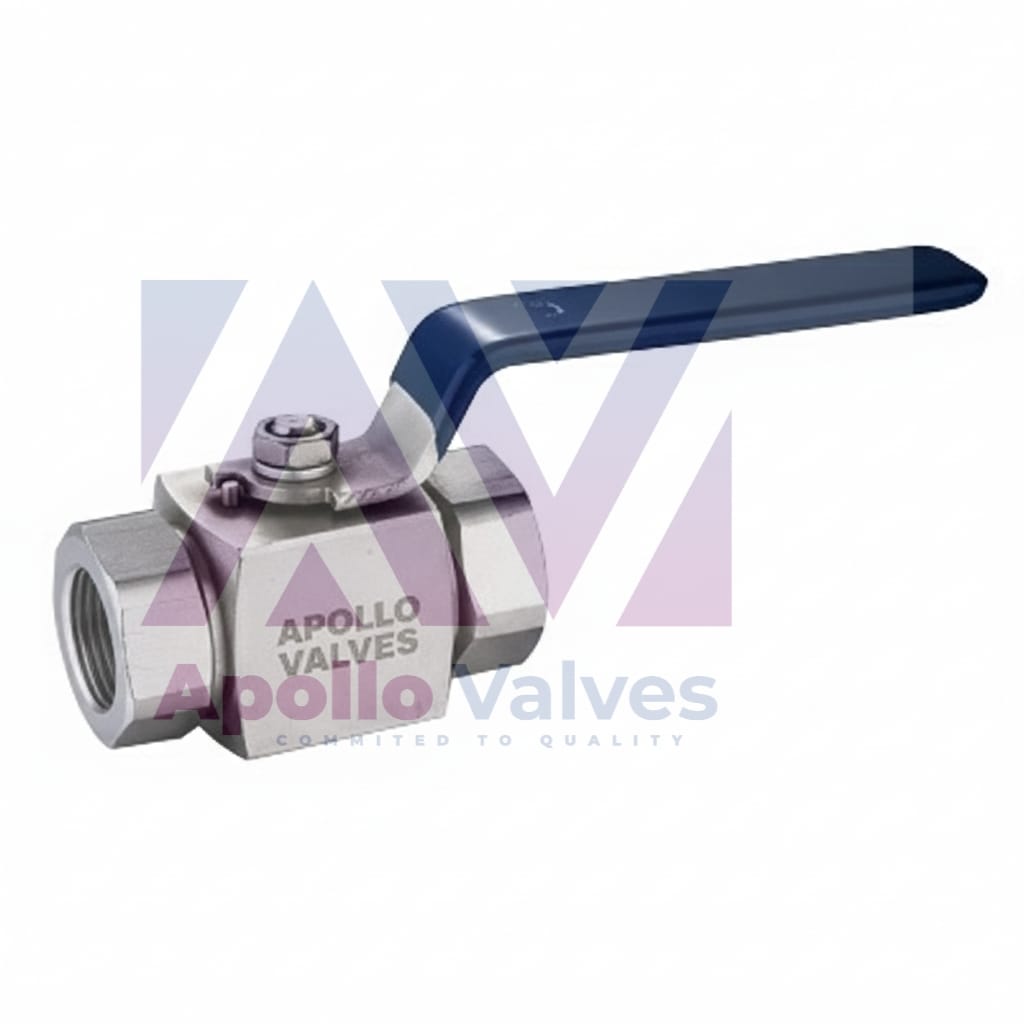

High Pressure Ball Valve

High Pressure Ball Valve

  • Body: CF8 | CF8M
  • Stem: AISI 304/316
  • Ends: Screwed | Socket
  • Hyd Pressure: 1000 PSI To 6000 PSI
  • Size Range: 15 MM To 50 MM

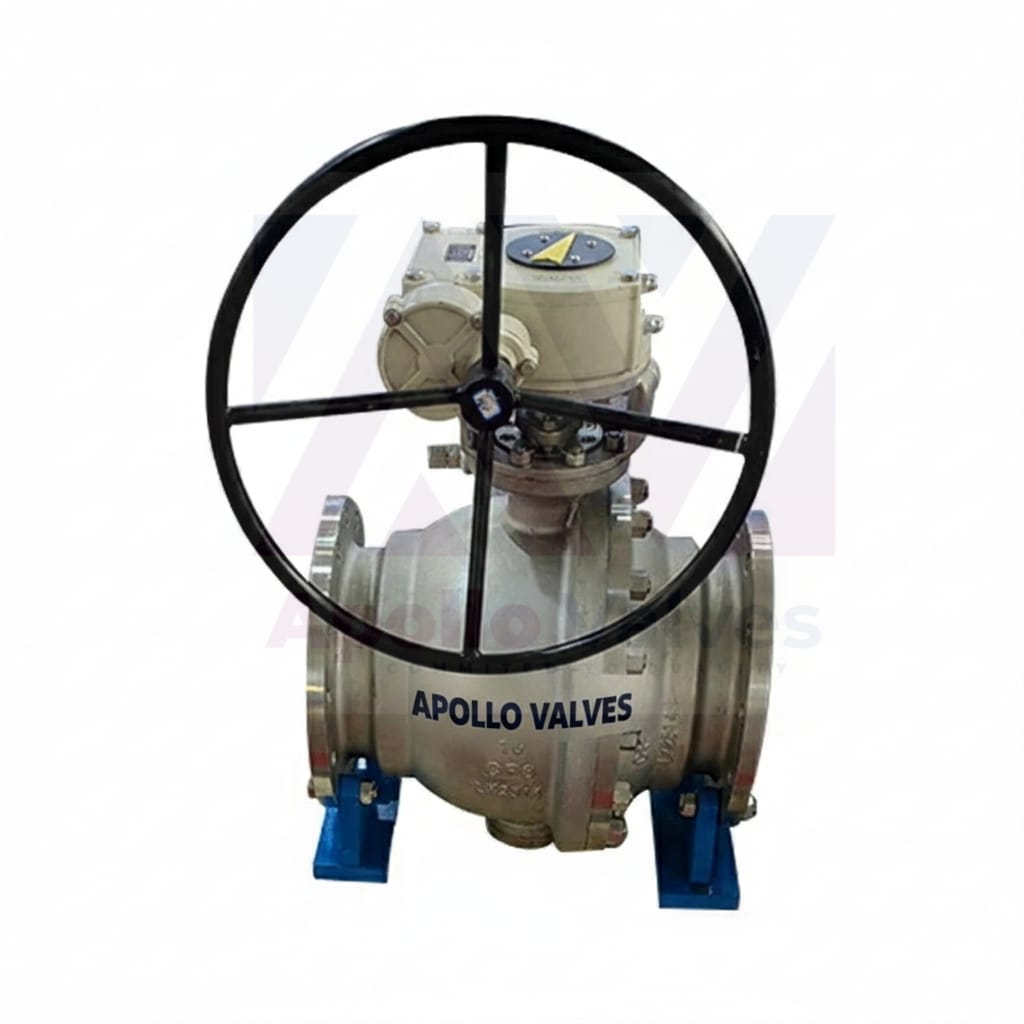

Trunnion Mounted Ball Valve

Trunnion Mounted Ball Valve

  • Body: WCB | CF8 | CF8M
  • Mfg/Test Std: API 6D
  • Ends: Flanged | RTJ | Butt Weld
  • Hyd Test: Body: 9275 Psig | Seat: 6790 Psig
  • Size Range: 40 MM To 300 MM

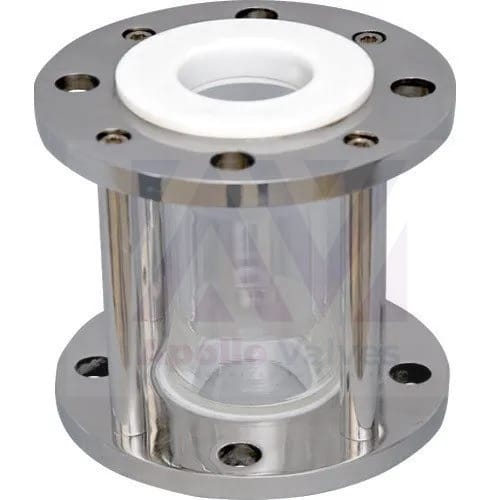

Bar Stock View Glass

Bar Stock View Glass

  • Flanges: SS 304 | SS 316
  • Glass: Toughened Borosil
  • Seat: PTFE
  • Testing: 100 Psig
  • Size Range: 15 MM To 150 MM

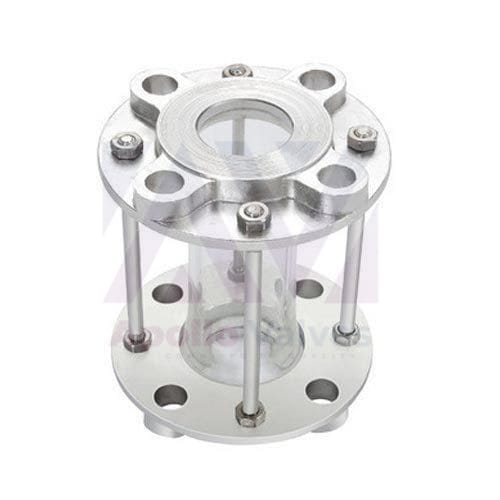

IC View Glass

IC View Glass

  • Flanges: SS 304 | SS 316
  • Glass: Toughened Borosil
  • Seat: PTFE
  • Testing: 100 Psig
  • Size Range: 15 MM To 150 MM

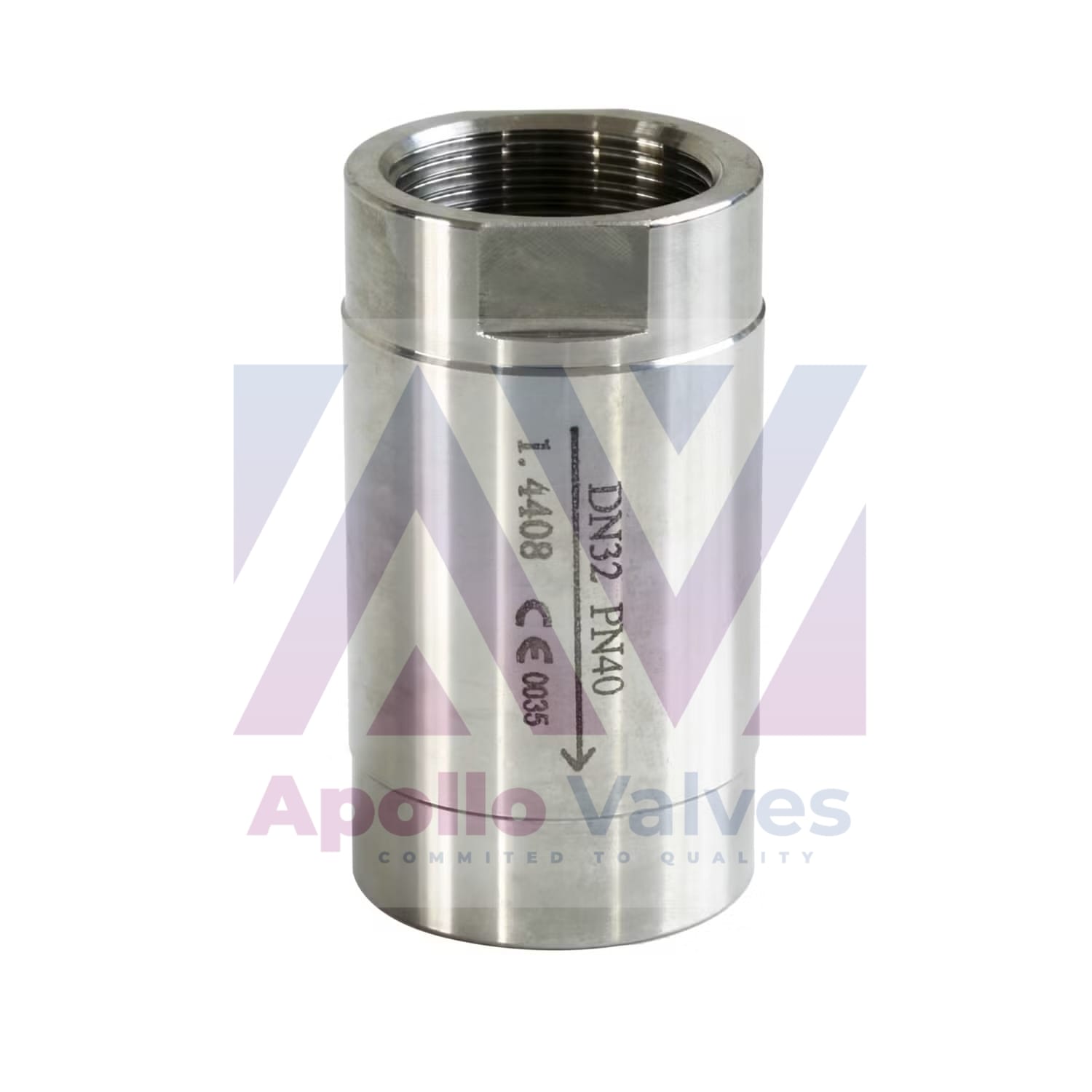

Vertical Check Valve

Vertical Check Valve

  • Body: SS 304 | SS 316
  • Spring: SS 304 | SS 316
  • Ends: Screwed End
Basket Strainer Flanged End

Basket Strainer Flanged End

  • Body: IS 2062 | BS 2762 | ASTM A106
  • Screen: SS 304 | SS 316
  • Ends: Flanged ASME B16.5 (150#/300#/600#)
  • Hyd Test: 450 Psig
  • Size Range: 25 MM To 1200 MM

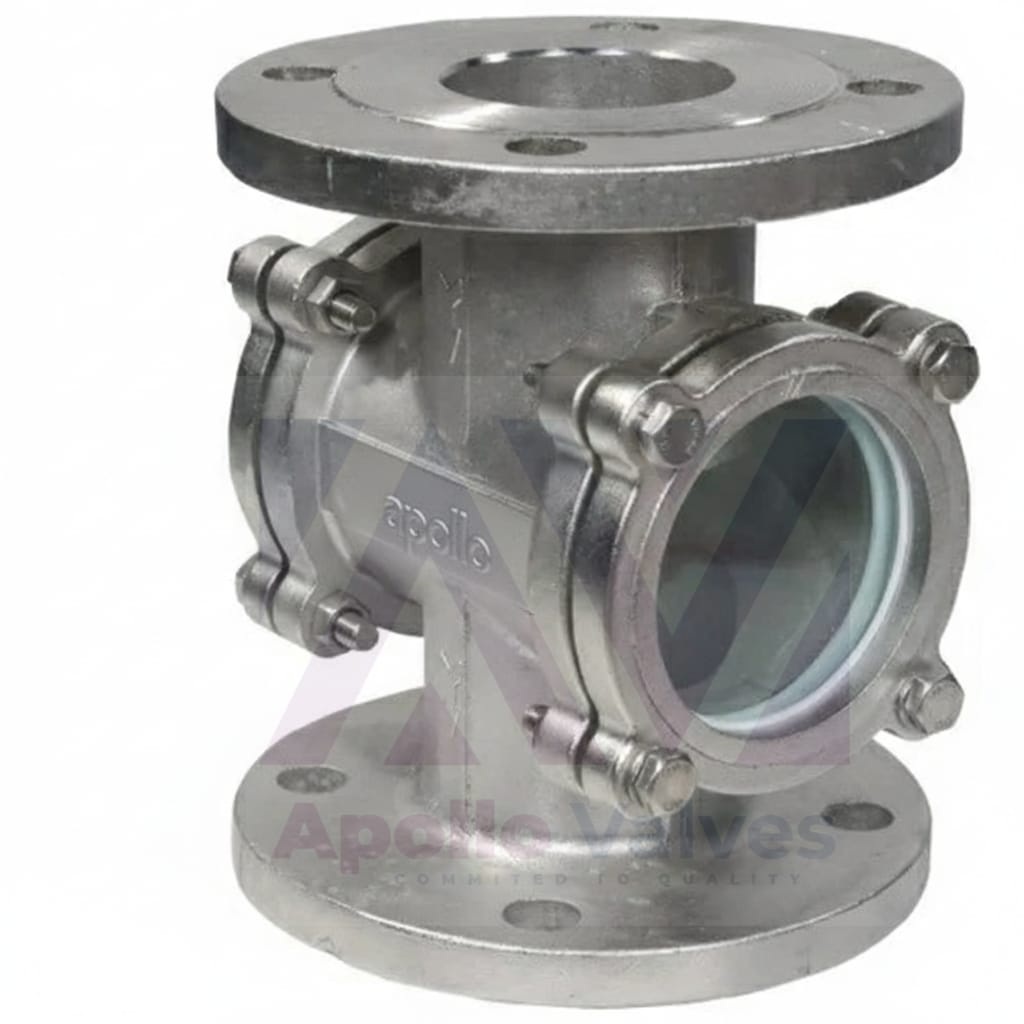

Double Window View Glass

Double Window View Glass

  • Flanges: SS 304 | SS 316
  • Glass: Double Window Toughened Borosil
  • Seat: PTFE
  • Testing: 100 Psig
  • Size Range: 15 MM To 150 MM
Our Product Range

Explore Other Valve Categories

⚙️ Pneumatic Valves ⚡ Electric Valves 🔩 Manual Valves Current 🛡️ Lined Valves 💊 Pharma Valves 🧪 PP Valves

Need a Custom Specification or Bulk Quote?

Our technical team can assist with valve selection, material compatibility, actuator sizing and delivery planning. Same-day quotes for standard items.

💬 WhatsApp Enquiry 📩 Contact Our Team
